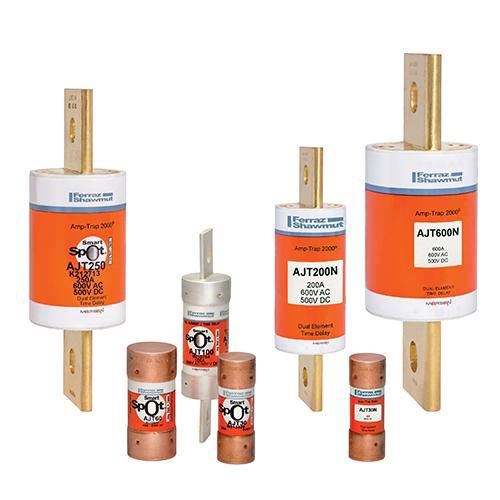

Cylindrical fuse AJT seriesbladetime delaycurrent-limiting
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical, blade
- Type
- time delay, current-limiting
- Class
- Class J
- Other characteristics
- low-voltage
- Applications
- for transformers, for lighting
- Amperage
Min.: 1 A
Max.: 600 A
- VAC
600 V
- Service temperature
Min.: -25 °C
(-13 °F)Max.: 80 °C
(176 °F)
Description
• UL listed to standard 248-8 File E2137
• DC listed to UL standard 248
• CSA certified to standard C22.2 No. 248.8
• IEC 60269-2-1
• AJT (70-600) EI:
• UL listed
• DC tested to UL standard 248
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
• Motor circuits
• Mains
• Feeders
• Branch circuits
• Lighting, heating & general loads
• Transformers
• Control panels
• Circuit breaker back-up
• Bus duct
• Load centers
