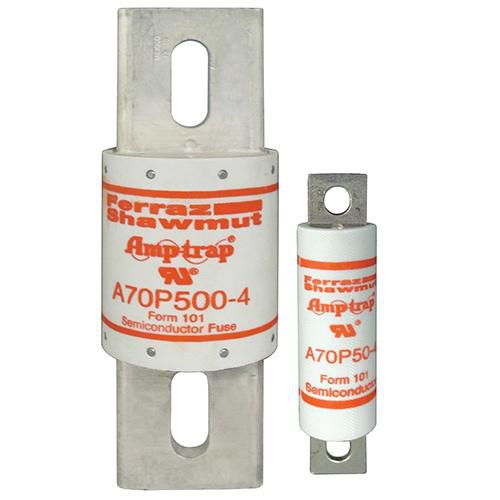

Cylindrical fuse Amp-Trap® A70P series

bladehigh-speedfor electric motors

• UL recognized component UL File E60314 • AC: guide no. JFHR2 (10-1000A) • DC: tested to UL standard 198L parameters (10-800A) A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement. Key features & benefits Low I2t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types helps in equipment design
