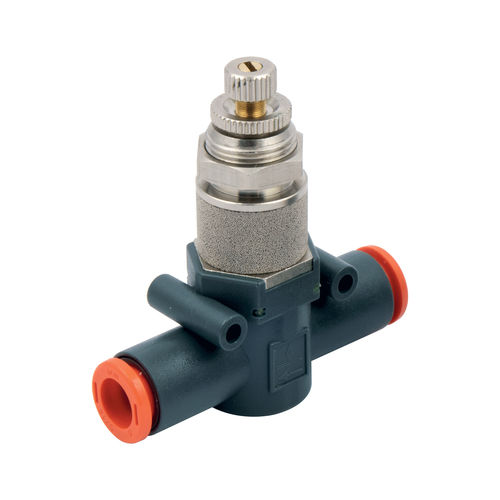

Needle valve VSRR L series
controlfor compressed airin-line

needle valve
needle valve
needle valve
needle valve
Add to favorites
Compare this product


Characteristics

Type
needle
Function
control
Media
for compressed air
Body
in-line, line, nickel-plated brass
Associated function
discharge, exhaust, quick-release exhaust
Other characteristics
push-in
DN

4 mm, 6 mm, 8 mm
(0.157 in, 0.236 in, 0.315 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 1 bar
(14.5 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Flow rate

Max.: 960 l/min
(253.61 us gal/min)

Min.: 50 l/min
(13.21 us gal/min)

Description

The VSRR L quick-exhaust valve with regulated exhaust belongs to the LINE ON LINE® family of products and can be linked in series or in parallel to all the other products. It comes in a version for pipe-pipe connection, which includes two push-in fittings, and a version for thread-pipe connection, which includes a nickel-plated brass taper thread and push-in fitting. The main feature of these valves is that the discharge flow can be adjusted via a pin regulator. This allows you to control the speed of the actuator connected to the valve, giving a higher speed than with an MRF regulator.
