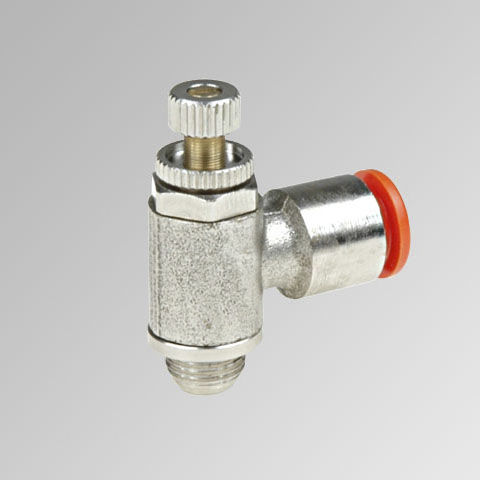

Volumetric flow regulator MRF N

for airfor compressed aircompact

The job of flow microregulators is to regulate speed in the pneumatic cylinders. The configuration of both type C (to be mounted on the cylinder inlet) and type V (to be mounted on the valve port) is such as to ensure full flow on feed and regulated flow on discharge. Type B (bidirectional) can be used to regulate the flow both on feed and discharge. All the MRF with a pipe engage-release system of the latest generation that facilitates detachment of the pipe even under difficult operating conditions. The rings can be rotated even with the MRF installed, which means that they can be mounted with the pipe facing towards any direction. Special focus has been placed on miniaturisation of the components (mainly for COMPACT MRF series O), which saves considerable space. • Short description: : MRF Compact N cyl.brass 5/32 10/32 UNF • Quantity per package: : 10 • Minimum order quantity: : 10 • Unit of measure: : items • Functional denomination : Micro flow regulator unidirectional for cylinder • Product's series : Micro flow regulator series MRF • Version : for cylinder
