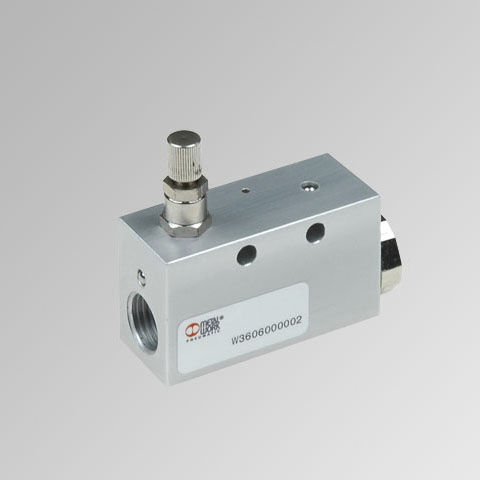

Control valve VAP series
flow regulatorfor airnickel-plated brass

control valve
control valve
control valve
Add to favorites
Compare this product

Go to the METAL WORK website for more information

Characteristics

Function
control, flow regulator
Media
for air
Body
nickel-plated brass, steel, anodized aluminum, zinc-plated steel
Associated function
outlet
Other characteristics
normally closed, in-line
DN

0.25 mm, 0.5 mm
(0.01 in, 0.02 in)

Pressure

Min.: 2 bar
(29 psi)

Max.: 10 bar
(145 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 70 °C
(158 °F)

Flow rate

1,050 l/min, 1,500 l/min, 2,350 l/min, 3,100 l/min
(277.38 us gal/min, 396.26 us gal/min, 620.8 us gal/min, 818.93 us gal/min)

Description

The in-line progressive starter is a valve that regulates the flow of air until the outlet pressure reaches a certain value, at which the valve opens and allows air to flow at full rate. This valve can be used to control a group of valves or a single valve, or it can be mounted between another valve and an actuator. The air that enters inlet 1 passes through a choke that has a knob adjustment to control the flow. The valve opens completely when the outlet pressure reaches about 60% of the inlet pressure. If the air supply is switched off, the valve discharges air from outlet 2 to inlet 1.
