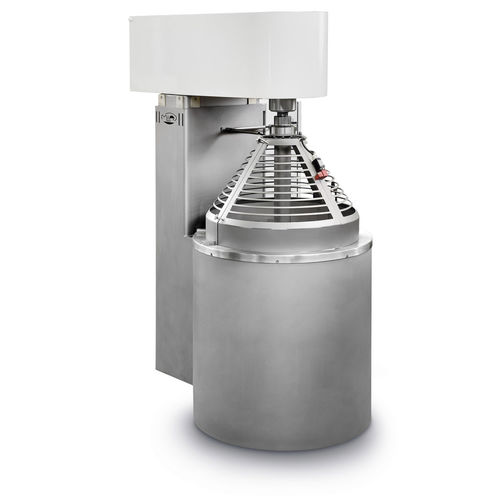

Continuous industrial cooker T75-1E, 1 ES

batchfor nougat

PRODUCTION CAPACITY 70-90 kg/batch depending on the recipe and % of nuts used OVERALL DIMENSIONS 1000 x 1300 x H=1900 mm. Weight: 900 Kg POWER CONSUMPTION 18 kW -Three-phase 400V – 50 Hz (standard version) The T75-1E cooker is designed for the production of nougat with easy-to-use heating elements that are simple to operate, and suitable for laboratories and large-scale industries. These cookers are designed for continuous nougat production over three working shifts. The key features of the cooker are: Production capacity of 70-90 kg/batch depending on the recipe and % of nuts used Cooking tank capacity 150 liters of water The heating system is fitted with armored electric heating elements in a diathermic oil bath with double-jacketed tank for "bain-marie" cooking Adjustable working temperature up to 125°C Adjustable mixer arm rotation speed in a 10-100 rpm range to adapt the machine to different recipes Electric motor for the 5.5 Kw three-phase mixer arm rotation with servo-ventilation. AISI 304 stainless steel tank, mixer arm, frame and safety guards. Painted metal machine head (stainless steel on request) On-board electrical panel with Schneider electromechanical components and Omron inverter
