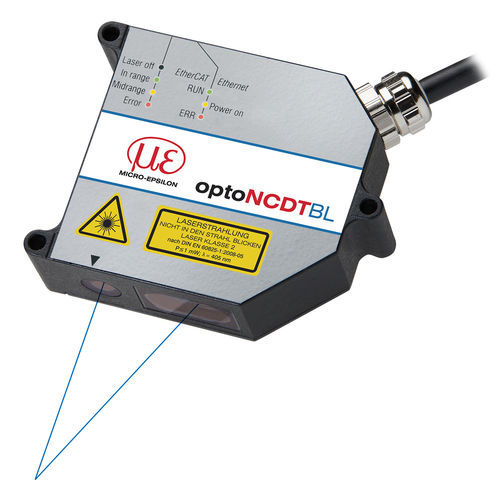

Linear displacement sensor optoNCDT 2300BLnon-contactopticallaser triangulation
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- laser triangulation, optical
- Output signal
- 4-20mA, Ethernet, EtherCAT, ProfiNet, 0-5 V, 0-10 V
- Measurement object
- metal, red-hot glowing, organic
- Protection class
- IP65
- Applications
- industrial, OEM applications, for process automation, for small spaces, for the food industry, for laboratory
- Other characteristics
- compact, high-resolution, high-precision, high-speed, with integrated electronics, rectangular, with integrated signal processing
- Measuring range
Max.: 50 mm
(1.97 in)Min.: 2 mm
(0.08 in)- Linearity
Max.: 0.08 %
Min.: 0.02 %
- Measuring rate
Max.: 49.1 kHz
Min.: 1.5 kHz
- Supply voltage
Max.: 30 V
Min.: 11 V
- Ambient temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
The high-end optoNCDT 2300BL series operates at a measuring rate up to 49kHz and is therefore ideally suited to precise measurements of fast moving objects. As the controller is completely integrated into the sensor housing, the sensor is ideal for installation in restricted spaces.
The new Blue Laser Technology enables the sensor to measure absolutely precisely and reliably on glowing metals and glowing silicon. The blue-violet laser offers decisive advantages here. Even when measuring organic materials such as veneers, wood or skin, the blue laser also contributes to high precision. While allowing higher stability, the blue laser light does not penetrate the measuring object due to the shorter wavelength of the blue-violet laser.
Operation is via a web interface that is addressed via an Ethernet interface. This web interface enables making settings for the processing of measured values and signals, e.g., peak selection, filter and masking features for the video signal.
The new Blue Laser Technology enables the sensor to measure absolutely precisely and reliably on glowing metals and glowing silicon. The blue-violet laser offers decisive advantages here. Even when measuring organic materials such as veneers, wood or skin, the blue laser also contributes to high precision. While allowing higher stability, the blue laser light does not penetrate the measuring object due to the shorter wavelength of the blue-violet laser.
Operation is via a web interface that is addressed via an Ethernet interface. This web interface enables making settings for the processing of measured values and signals, e.g., peak selection, filter and masking features for the video signal.
