Linear displacement sensor optoNCDT 1910
non-contactopticallaser triangulation

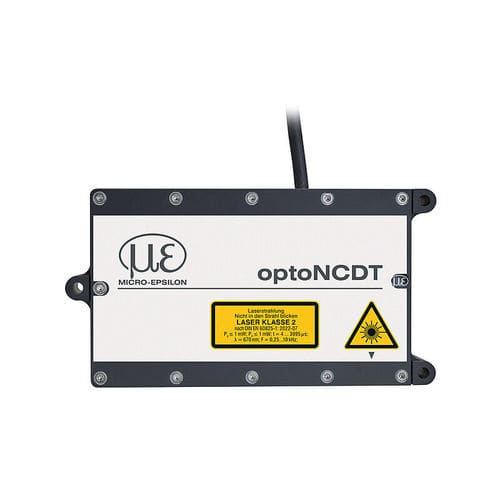

Linear displacement sensor - optoNCDT 1910 - MICRO-EPSILON - non-contact / optical / laser triangulation
Linear displacement sensor - optoNCDT 1910 - MICRO-EPSILON - non-contact / optical / laser triangulation
Add to favorites
Compare this product
Go to the MICRO-EPSILON website for more information

Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
laser triangulation, optical
Output signal
4-20mA, digital, EtherCAT, ProfiNet, 0-5 V, 0-10 V
Measurement object
metal, organic
Protection class
IP65
Applications
industrial, OEM applications, for process automation, rugged, for small spaces, for laboratory, for automation
Other characteristics
compact, rugged, high-precision, with integrated electronics, rectangular
Measuring range

Max.: 750 mm
(29.53 in)

Min.: 500 mm
(19.69 in)

Linearity

Max.: 0.08 %

Min.: 0.07 %

Measuring rate

Max.: 9,500 Hz

Min.: 250 Hz

Supply voltage

Max.: 30 V

Min.: 11 V

Ambient temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

The optoNCDT 1910 provides measuring ranges of 500 mm and 750 mm for applications requiring a large measuring range or distance. A high measuring rate up to 9.5 kHz and intelligent exposure control ensure fast, reliable results in dynamic conditions. Compact housing with integrated controller saves installation space; optional cooling housing enables operation up to 200 °C.
Characteristics
  • Measuring ranges (mm): 500 | 750
  • Linearity from 350 µm
  • Adjustable measuring rate up to 9.5 kHz
  • Analog and digital outputs
  • Compact design with integrated controller
  • Real-time adaptation to changing surfaces (Advanced Surface Compensation)
  • Predefined and individual presets in the web interface
