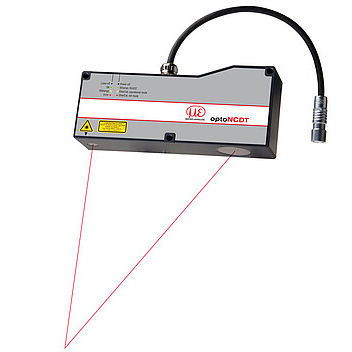

Linear displacement sensor optoNCDT 2310
non-contactopticallaser triangulation

Linear displacement sensor - optoNCDT 2310 - MICRO-EPSILON - non-contact / optical / laser triangulation
Linear displacement sensor - optoNCDT 2310 - MICRO-EPSILON - non-contact / optical / laser triangulation
Add to favorites
Compare this product
Go to the MICRO-EPSILON website for more information

Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
optical, laser triangulation
Output signal
4-20mA, digital output, Ethernet, EtherCAT, ProfiNet, 0-10 V, 0-5 V
Measurement object
metal, organic
Protection class
IP65
Applications
industrial, OEM applications, for process automation, for automation
Other characteristics
compact, rugged, high-precision, high-resolution, rectangular, with integrated electronics, long-range
Measuring range

10 mm, 20 mm, 40 mm, 50 mm
(0.39 in, 0.79 in, 1.57 in, 1.97 in)

Linearity

Max.: 0.1 %

Min.: 0.03 %

Measuring rate

Max.: 49.1 kHz

Min.: 1.5 kHz

Supply voltage

Max.: 30 V

Min.: 11 V

Ambient temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

The optoNCDT 2310 long-range laser sensors are designed for applications where a high measuring distance is required. However, the relatively small measuring range facilitates extremely precise measurement at a large distance. Characteristics Large offset distance with small measuring range High measuring rate and resolution Adaptation to changing surfaces Sufficient distance in case of high object temperatures or moving parts
