Linear displacement sensor optoNCDT 1900LL
non-contactopticallaser triangulation

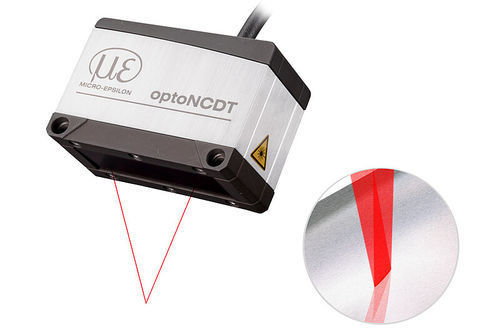

Linear displacement sensor - optoNCDT 1900LL - MICRO-EPSILON - non-contact / optical / laser triangulation
Linear displacement sensor - optoNCDT 1900LL - MICRO-EPSILON - non-contact / optical / laser triangulation
Add to favorites
Compare this product
Go to the MICRO-EPSILON website for more information

Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
laser triangulation, optical
Output signal
4-20mA, digital, Ethernet, EtherCAT, ProfiNet, 0-5 V, 0-10 V
Measurement object
metal, organic
Protection class
IP67
Applications
industrial, OEM applications, for process automation, rugged, for small spaces, for robotics, for shiny metal surfaces, for laboratory, for automation
Other characteristics
compact, rugged, high-resolution, high-precision, high-speed, with integrated electronics, rectangular, with integrated signal processing
Measuring range

Max.: 50 mm
(1.97 in)

Min.: 2 mm
(0.08 in)

Linearity

Max.: 0.05 %

Min.: 0.02 %

Measuring rate

Max.: 10,000 Hz

Min.: 250 Hz

Supply voltage

Max.: 30 V

Min.: 11 V

Ambient temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

optoNCDT 1900LL laser sensors are designed for the measurement of shiny metallic and rough surfaces. Their small laser line enables precise measurement results with shiny metallic surfaces and structured objects. Due to their extremely compact size, the sensors can also be integrated into restricted installation spaces.
Characteristics
  • Special optics with small oval light spot
  • Compact design with integrated controller; high resistance to ambient light
  • Measuring ranges (mm): 2 | 6 | 10 | 25 | 50
  • Linearity from 1 µm
  • Repeatability from 0.1 µm
  • Adjustable measuring rate up to 10 kHz
  • Interfaces: analog, RS422, PROFINET, EtherNet/IP, EtherCAT
  • Advanced Surface Compensation for surfaces with changing reflections
