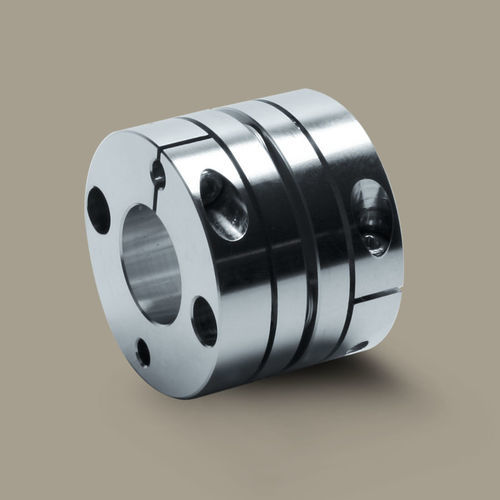

Flexible coupling Servoflex SFC SA2 C series

for motorsfor machinesfor servo motors

Product overview
The Single Flex coupling Servoflex SFC SA2 C (clean room version) from Miki Pulley is cleaned, assembled (ISO class 6) and packed for cleanroom use. It combines very high torsional stiffness with compensation capability for axial, angular and parallel misalignments while offering ultra-low inertia due to a high-strength aluminium alloy construction.

Main features

• Hubs made from high-strength aluminum alloy
• Clean room suitable surface treatment (ISO class 6)
• Ultra low inertia
• High torsional stiffness
• Rated torque range example shown on page: 5 to 100 Nm (varies by model)

Technical data (Servoflex SFC SA2 cleanroom)
Model | Type | Rated torque (Nm) | Misalignment parallel (mm) | Misalignment angular (°) | Misalignment axial (mm) | Max. rpm (min-1) | Torsional stiffness (Nm/rad) | Axial stiffness (N/mm) | Inertia (kg·m2) | Mass (kg)
SFC-030SA2 | B | 5 | 0.02 | 1 | ±0.2 | 10000 | 8000 | 64 | 6.11×10^-6 | 0.04
SFC-035SA2 | C | 10 | 0.02 | 1 | ±0.25 | 10000 | 18000 | 112 | 18.50×10^-6 | 0.083
SFC-040SA2 | B | 12 | 0.02 | 1 | ±0.3 | 10000 | 20000 | 80 | 22.59×10^-6 | 0.085
SFC-050SA2 | B | 25 | 0.02 | 1 | ±0.4 | 10000 | 32000 | 48 | 76.71×10^-6 | 0.178
SFC-055SA2 | C | 40 | 0.02 | 1 | ±0.42 | 10000 | 50000 | 43 | 188.7×10^-6 | 0.315
SFC-060SA2 | B | 60 | 0.02 | 1 | ±0.45 | 10000 | 70000 | 76.4 | 206.3×10^-6 | 0.328
SFC-080SA2 | C | 100 | 0.02 | 1 | ±0.55 | 10000 | 140000 | 128 | 716.3×10^-6 | 0.72

Dimensions (unit: mm)
Model | Typ | d1 Min. | d1 Max. | d2 Min. | d2 Max. | D | N | L | LF | S | A1 | A2 | C | K | M | Nm Low dust | Nm Fluorine
SFC-030SA2 | B | 5 | 10 | 5 | 10 | 16 | 34 | 21.6 | 27.3 | 12.4 | 2.5 | 8 | 12.5 | 3.75 | 14.5 | 1-M3 | 1.5 | 3.2
SFC-035SA2 | C | 6 | 16 | 6 | 16 | 19 | 39 | - | 34 | 15.5 | 3 | - | 14 | 4.5 | 17 | 1-M4 | 4 | 7.7
SFC-040SA2 | B | 8 | 14 | over 10 | 14 | 16 | 44 | - | 34 | 15.5 | 3 | 11 | 17 | 4.5 | 19.5 | 1-M4 | 4 | 7.7
SFC-050SA2 | B | 8 | 19 | over 19 | 19 | 30 | 56 | 38 | 43.4 | 20.5 | 2.4 | 14.5 | 22 | 6 | 26 | 1-M5 | 7 | 12
SFC-055SA2 | C | 10 | 30 | 10 | 30 | 30 | 63 | - | 50.6 | 24 | 2.6 | - | 23 | 7.75 | 31 | 1-M6 | 13 | 22.5
SFC-060SA2 | B | 11 | 24 | 11 | 24 | 35 | 68 | 46 | 53.6 | 25.2 | 3.2 | 17.5 | 26.5 | 7.75 | 31 | 1-M6 | 13 | 22.5
SFC-080SA2 | C | 18 | 35 | 18 | 35 | 40 | 82 | - | 68 | 30 | 8 | - | 28 | 9 | 38 | 1-M8 | 27 | 45

Applications / Industries
Recommended for mechanical engineering, servomotor applications, machine tools and robotics where cleanroom compatibility and high torsional stiffness with low inertia are required.

Technical specifications

• Brand: Miki Pulley
• Series / Model: Servoflex SFC SA2 C (clean room version)
• Clean room handling: cleaned, assembled and packed for clean room use (ISO class 6)
• Hubs material: high-strength aluminium alloy
• Compensation capability: axial and angular misalignment; parallel misalignment values per model shown above
• Torsional stiffness: values per model shown above (e.g. from 8,000 to 140,000 Nm/rad depending on model)
• Rated torque per model: detailed per model above (examples: 5 Nm up to 100 Nm shown in table)
• Max. speed (rpm): up to 140,000 min-1 for some models (see table)
• Inertia and mass: inertia and mass values provided per model above
