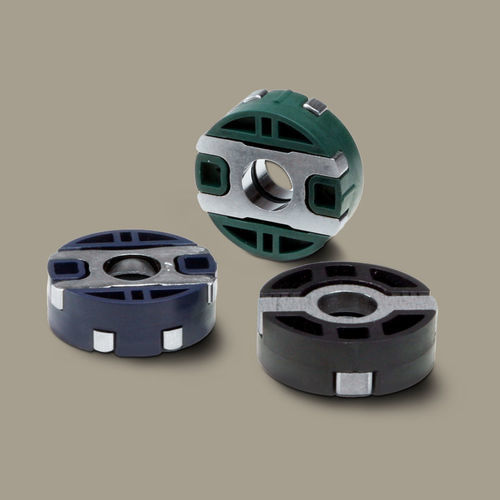

Oldham coupling CPG

for shaftsfor servo motorsfor encoders

Product overview
The Oldham coupling CPG is a cross-slider coupling designed for servomotors. It compensates shaft misalignment between motor and encoder to maintain precise encoder-based positioning and smooth torque transmission.

Key features

• Rated torque: 0.05 Nm
• Absorbs parallel misalignment: 0.1 mm
• Absorbs angular misalignment: 0.1°
• Axial misalignment tolerance: 0.3 mm
• Backlash-free, smooth torque transmission
• Thermal isolation from motor
• Max speed: 3000 min^-1
• Operating temperature: 0–110 °C (model dependent)
• Easy to install

Technical data

• Model 1 — Rated torque: 0.05 Nm; Parallel misalignment: 0.1 mm; Angular misalignment: 0.1°; Axial: 0.3 mm; Max rpm: 3000; Operating temp: 0–110 °C
• Model 2 — Rated torque: 0.05 Nm; Parallel misalignment: 0.1 mm; Angular misalignment: 0.1°; Axial: 0.3 mm; Max rpm: 3000; Operating temp: 0–111 °C

Dimensions (mm)

• Model 1 — Outer diameter: 30 mm; Shaft diameter: 10 mm; Overall length: 10 mm
• Model 2 — Outer diameter: 30 mm; Shaft diameter: 10 mm; Overall length: 10 mm

Applications and compatibility

• Servo and encoder connections for high-precision positioning systems
• Robotics, automation and CNC machines
• Packaging and handling equipment

Installation and maintenance

• Simple axial mounting; compatible with 10 mm shafts
• Minimal maintenance; periodic alignment checks recommended
• Suitable where electrical/thermal isolation between motor and encoder is required
