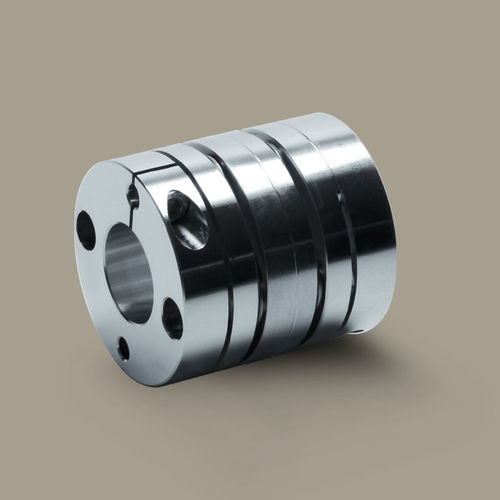

Flexible coupling Servoflex SFC DA2 C series

aluminumdoublefor servo motors

Description
The Double Flex DA2 version of the Servoflex SFC series is a cleanroom-compatible flexible coupling cleaned, assembled and packed for ISO class 6 environments. It provides high torsional stiffness and compensates axial, parallel and angular misalignment while maintaining low mass inertia due to lightweight high-strength aluminium alloy hubs.

Features

• Hubs made of high-strength aluminium alloy
• Cleanroom-compatible handling and surface treatment (ISO class 6)
• Ultra low inertia
• High torsional stiffness
• Rated torque examples: 5 to 100 Nm (varies by model)

Technical data (Servoflex SFC DA2 cleanroom)
Model | Type | Rated torque (Nm) | Misalignment parallel (mm) | Misalignment angular (°) | Misalignment axial (mm) | Max. rpm (min⁻¹) | Torsional stiffness (Nm/rad) | Axial stiffness (N/mm) | Inertia (kg·m²) | Mass (kg)
SFC-030DA2 | B | 5 | 0.18 | 2 | ±0.4 | 10000 | 4000 | 32 | 9.49×10^-6 | 0.06
SFC-035DA2 | C | 10 | 0.24 | 2 | ±0.5 | 10000 | 9000 | 56 | 27.03×10^-6 | 0.122
SFC-040DA2 | B | 12 | 0.24 | 2 | ±0.6 | 10000 | 10000 | 40 | 35.91×10^-6 | 0.132
SFC-050DA2 | B | 25 | 0.28 | 2 | ±0.8 | 10000 | 16000 | 24 | 119.8×10^-6 | 0.27
SFC-055DA2 | C | 40 | 0.31 | 2 | ±0.84 | 10000 | 25000 | 21.5 | 262.3×10^-6 | 0.436
SFC-060DA2 | B | 60 | 0.34 | 2 | ±0.9 | 10000 | 35000 | 38.2 | 317.8×10^-6 | 0.493
SFC-080DA2 | C | 100 | 0.52 | 2 | ±1.10 | 10000 | 70000 | 64 | 1047×10^-6 | 1.05

Specifications / technical notes

• Cleanroom handling: cleaned, assembled and packed to be suitable for clean rooms (ISO class 6)
• Hub material: high-strength aluminium alloy
• Compensation: axial, parallel and angular misalignment
• Low mass inertia due to aluminium construction (see inertia values above)
• High torsional stiffness (values vary per model; see technical data)
• Speed rating example: up to 10,000 min⁻¹ (varies by model)
• Available models: SFC-030DA2, SFC-035DA2, SFC-040DA2, SFC-050DA2, SFC-055DA2, SFC-060DA2, SFC-080DA2
