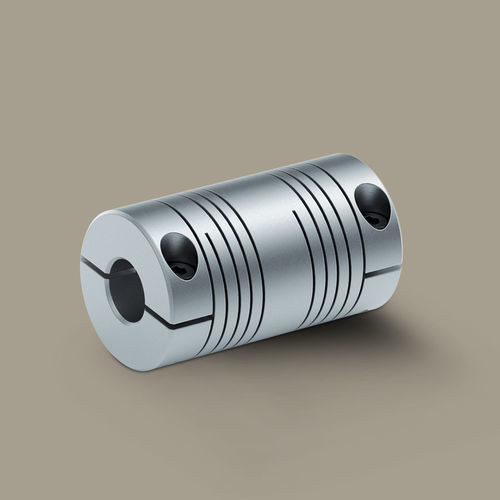

Spiral coupling MHL seriesstainless steelaluminumwith clamp
Add to favorites
Compare this product
Characteristics
- Type
- spiral
- Construction
- aluminum, stainless steel, with clamp
- Product applications
- for servo motors, for the food industry, for medical devices, for packaging
- Performance
- high-torque, backlash-free, maintenance-free, low noise and vibration
- Other characteristics
- misalignment correction, compensating
- Torque
Max.: 23.5 Nm
(17.332711 ft.lb)Min.: 3.2 Nm
(2.360199 ft.lb)- Rotational speed
Max.: 3,600 rpm
(22,619.4671 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Product description
The MHL helical coupling is designed for higher torque and larger shaft dimensions. The clamping hub mounting ensures a torque-transmitting, backlash-free connection. It provides high misalignment compensation in a compact design and is suitable for demanding industrial applications.
Features
Applications
Servo drive technology; packaging & food industry; medical technology
Characteristics / Technical specifications
The MHL helical coupling is designed for higher torque and larger shaft dimensions. The clamping hub mounting ensures a torque-transmitting, backlash-free connection. It provides high misalignment compensation in a compact design and is suitable for demanding industrial applications.
Features
- Short-time torque: approx. 3.2 to 23.5 Nm
- High torque capacity for power-dense applications
- Large misalignment compensation (especially parallel offset)
- Clamping hub mounting for secure, backlash-free installation
- Smooth running due to optimized spring stiffness
- Wear-free and low-maintenance due to one-piece design
- Operating speeds up to 3600 min^-1
Applications
Servo drive technology; packaging & food industry; medical technology
Characteristics / Technical specifications
- Brand: Miki Pulley
- Model family: MHL series
- Variants: Aluminium and stainless steel
- Mounting: Clamping hub (torque-transmitting, backlash-free)
- Maximum speed: 3600 min^-1
- Short-time torque range (depending on model): approx. 3.2 Nm to 23.5 Nm
- High misalignment compensation, especially for parallel offset
- Low-maintenance and wear-free due to one-piece design
