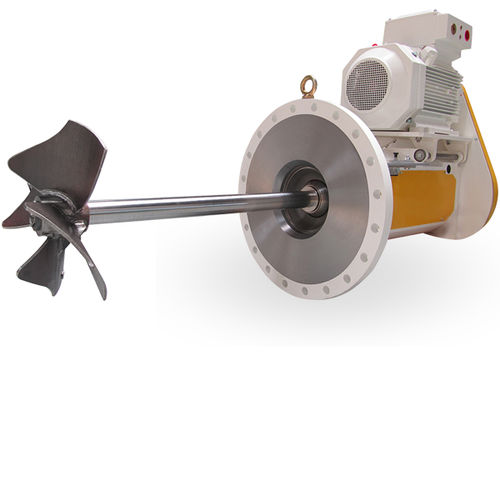

Turbine mixer

continuousfor liquidssolid

Reliable Tank Mixers Side-Entry Series Compact. Powerful. Consistent Results Mixing technology for all your crude oil & derivatives storage tanks Typically, large storage tanks require the constant mixing of contents, but roof-mounted agitators cannot support the heavy load. In response, Milton Roy Mixing has developed a specific range of side-entry mixers for large-volume storage tanks. Our side-entry mixer is mounted quickly and easily to the tank flange and delivers the most effective blending results in an extremely efficient unit. Our innovative small diameter SABRE® impeller allows for reduced energy consumption and easy installation. In addition, we can ensure proper agitation using numerical simulation of fluid flows (CFD). This helps to forecast and predict the storage tanks mixing with no dead zone, and lower energy consumption compared to conventional solutions. We can also provide an adjustable agitator to increase the scope enclosure. The side-entry mixer concept is driven by four top priorities: safety, reliability, process optimization and easy, cost-effective maintenance. Large mixing volumes. The mixer is designed for tanks up to 200,000 m³ (1.3 MM barrels). The high liquid jet amplitude propelled by our impeller allows the moving of large volumes using less power. Easy installation and maintenance. This compact, side-entry mixer has been designed specifically to mount on the lateral flange of the tank and with lightweight, custom impellers, it can installed quickly and easily. Its exclusive seal shut off device allows for safe, fast and easy maintenance or replacement of the mechanical seal without emptying the tank. Low power consumption.
