thermal mass flow controller / for gas
P4B MFC

Add to MyDirectIndustry favorites

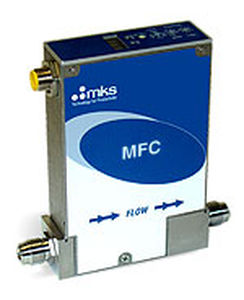

thermal mass flow controller / for gas thermal mass flow controller / for gas - P4B MFC
{{requestButtons}}

Characteristics

  • Technology:

    thermal mass

  • Fluid:

    for gas

  • Flow rate:

    Max.: 3,000 l/h (793 us gal/h)

    Min.: 0 l/h (0 us gal/h)

  • Pressure:

    150 psi

Description

The P4B MFC is the next generation of multi-gas/multi-range mass flow controllers designed to meet critical gas flow control requirements for accuracy and speed of response while minimizing mass flow controller inventory requirements. P4B MFC multi-gas/multi-range capabilities are enabled with gas parameters already stored in memory which provide 1% of setpoint accuracy for the user selected gas. Configuring a gas and range is easily done through an Ethernet interface with no special software - only a PC and an internet browser are needed.

FEATURES & BENEFITS:

Fast response reduces time to stabilization
Tightly-controlled flow accuracy improves process control
Multi-gas, Multi-range capabilities reduces MFC inventory requirements
Embedded software for configuration and diagnostics
Configure and control with any PC and web browser
