thermal mass flow controller / for gas
IM50A

Add to MyDirectIndustry favorites
thermal mass flow controller / for gas thermal mass flow controller / for gas - IM50A
{{requestButtons}}

Characteristics

  • Technology:

    thermal mass

  • Fluid:

    for gas

  • Flow rate:

    Min.: 0 l/h (0 us gal/h)

    Max.: 3,000 l/h (13 us gal/h)

  • Pressure:

    150 psi

Description

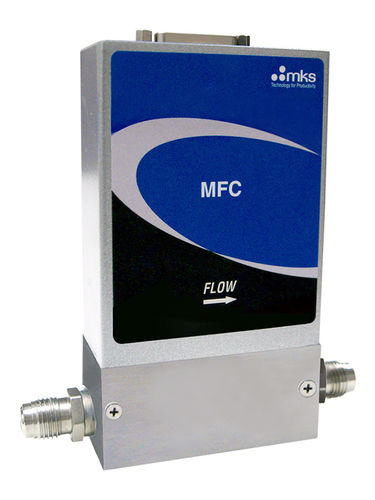

The IM50A Mass Flow Controller & Mass Flow Meter are a general purpose, metal-sealed MFC with flow control capability from 5 sccm to 50 slm Full Scale, N2 equivalent. It incorporates the latest in digital flow control electronics and a proven, patented thermal sensor and mechanical design.

The IM50A is a digitally-controlled MFC offered with analog (0 to 5 VDC or 4-20 mA) or a variety of digital (RS485, Profibus® and DeviceNet™) I/O. The digital control electronics utilize the latest in MKS control algorithms for fast and repeatable response to setpoint throughout the control range. Typical response times are on the order of 500 milliseconds. A digital calibration (included) yields 1% of setpoint accuracy on the calibration gas.
