Bending test kit CrankSense

positiondeflectiondeformation

Overview
Motionics Wireless Crankshaft Deflection Test Kit utilizes a Motionics Bluetooth crankshaft gage for wireless crankshaft web deflection tests. Using an iPad or Windows PC, users can record deflection data wirelessly, easily and error-free. Thanks to the built-in rotating angle measurement there is no need to mark test points on the crankshaft web. The Crankshaft Test app displays the crankshaft angle and notifies users once the crankshaft rotates to test locations. In the Windows software, deflection measurements can be taken automatically at set test points. A PDF test report can be generated and stored at the end of each test.

Software
iPad application: Crankshaft Deflection Test Wireless (iOS/iPad).
Windows application: Crankshaft Deflection Test Wireless for Windows (supports streaming readings to Windows PC with appropriate Bluetooth dongle).

App Features

• Wireless data recording
• Rotating angle indicator
• Measurement results organized in table
• Automatic test points notification
• Automatic vertical/horizontal deflection calculation
• End play test included
• Test report generation
• Tester signature
• Local report storage manager
• Email report and wireless print

What’s in the box

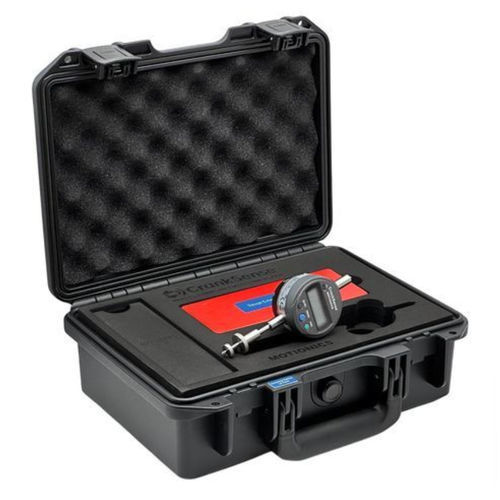

• Motionics Wireless Crankshaft Gage ×1
• Adjustable Probe ×1
• Extension Rod Set (1/2 in. to 6 in., one each) ×1
• 60° Punch ×1
• Protective Carrying Case ×1
• USB Charging Cable ×1
• USB Power Adapter ×1
• Crankshaft Deflection Test App for iPad ×1
• User Manual ×1
• iPad Mini 5 with Protective Case (Optional)
• Extended Warranty (Optional)

Specification
Wireless Crankshaft Deflection Test Kit
Resolution — 0.0001″ / 0.001 mm
Measurement Range — 0.4″ / 10 mm
Connectivity — Bluetooth 4.0 Wireless Connection
Accuracy — 0.00012″
Wireless Data Transmission Rate — 10 Hz
Wireless Transmission Range — up to 66 ft / 20 m (indoors) / 100 ft / 30 m (outdoors)
Crankshaft Web Gap Range — 6.29 to 28.34″ / 160 to 720 mm (shorter range down to 5.7″ / 145 mm available as an option)
Working Temperature — 32 to 122 °F
Battery — 400 mAh rechargeable
Battery Usage Life — 30 hrs
Charging — 5 VDC USB
Feature — Built-in Rotating Angle Measurement with 1° resolution

Technical specifications / Characteristics

• Resolution: 0.0001″ / 0.001 mm
• Measurement Range: 0.4″ / 10 mm
• Connectivity: Bluetooth 4.0
• Accuracy: 0.00012″
• Data Rate: 10 Hz
• Transmission Range: up to 66 ft / 20 m (indoors) and 100 ft / 30 m (outdoors)
• Crankshaft Web Gap Range: 6.29–28.34″ / 160–720 mm (optional shorter range to 5.7″ / 145 mm)
• Operating Temperature: 32–122 °F
• Battery: 400 mAh rechargeable (approx. 30 hrs usage)
• Charging: 5 VDC USB
• Special Feature: Built-in rotating angle measurement (1° resolution)
