Pressure test kit PileSense™

compressionpositiondeflection

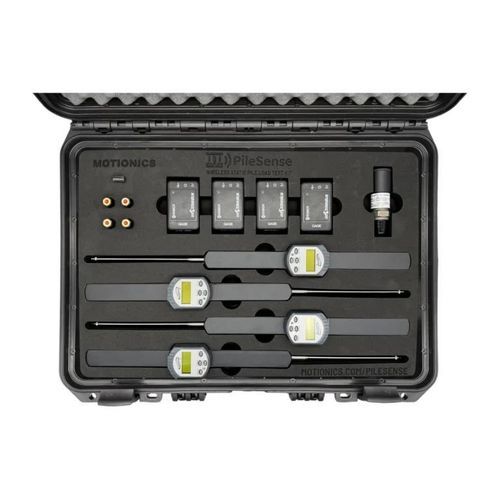

Product overview
PileSense™ wireless static pile load test kit measures pile deflection under controlled load conditions using Bluetooth dial indicators (BlueDials) together with a Bluetooth pressure sensor (BluePSI) or wireless load gages. Multiple BlueDials (up to 6 on an iPad, more on a Windows PC) attach to the pile to record movement during load application and removal. The pressure sensor mounts to a hydraulic pump or a wireless force gauge can be used. All wireless gages stream synchronized readings in real time to an iPad app or Windows MultiGage software.

Key capabilities

• Simultaneous wireless measurement of pile deflection and applied load
• Real-time synchronized readings from multiple gauge types
• Cross-platform support: dedicated iPad app and MultiGage for Windows
• Optional cloud connectivity for remote monitoring, alerts and data history

Included

• Bluetooth Dial Indicator (BlueDial) – up to 6 units
• Bluetooth Pressure Sensor (BluePSI)
• USB charging cable and USB power adapter
• Protective carrying case
• iPad Pile Load Test app (provided)
• Optional: iPad Mini 5 with protective case
• Optional: Extended warranty

Software

• iOS: Pile Load Test app for pairing wireless dial indicators and load gages, recording tests, and using custom test templates
• Windows: MultiGage Windows software plus USB Bluetooth dongle to stream readings from multiple devices to any Windows PC (Win7 or later)
• MultiGage Cloud: IoT platform to connect Bluetooth sensors to the Internet for remote real-time monitoring, historical data, dashboards, alerts and analytics

Applications and benefits

• Wireless pile load testing solution to increase on-site efficiency and safety by eliminating wired connections
• Simultaneous recording from multiple deflection and load sensors for comprehensive test documentation
• Cross-platform and cloud-capable workflow so teams can view live data locally or remotely and generate test reports

Technical specifications

• Bluetooth Dial Indicator (BlueDial): Measurement range: 2" / 50 mm; Resolution: 0.0005" / 0.01 mm; Bluetooth Low Energy; Data interval: 0.1 s; Transmission range: up to 66 ft / 20 m (indoors) and 100 ft / 30 m (outdoors); Operating temperature: 32 to 122 °F; Indicator battery: CR2032; Transmitter battery: 400 mAh rechargeable.
• Bluetooth Pressure Sensor (BluePSI): Measurement range: 0–5000 psi (other ranges available); Accuracy: ±0.25% FS; Bluetooth 4.0; Data interval: 5 s (configurable); Transmission range: up to 66 ft / 20 m; Operating temperature: -4 to 185 °F; Battery: CR2050; Pressure port: 1/4-18 NPT (options available).
• Bluetooth Load Gages: Capacities vary by model (examples: dynamometer 6.5 te / 14,300 lb; compression gages 5–1,000 te; tension gages 1000 kg–500 te); Resolution and accuracy vary by model (examples: dynamometer resolution 0.001 te / 2 lb; accuracy ±0.2% FS for dynamometer, ±0.1% FS for compression/tension gages); Wireless rate: 10 Hz; Transmission range: 100 m / 328 ft; Operating temperature: -10 to 50 °C; IP rating: IP67; Battery: 4x AA; Battery life: ~500 hr.
• System features: Support for multiple BlueDials (up to 6 on iPad, more on PC), synchronized multi-gage readings, custom test templates in the Pile Load Test app, optional cloud gateway for remote access, alerts for sensor disconnection or low battery, and customizable dashboards and analytics in MultiGage Cloud.
