Bending test kit BNK-102

positionmanualfor materials

Overview
Motionics Wireless Benkelman Test Kit is a measurement kit for Benkelman beam deflection testing of flexible pavements. It includes a Bluetooth dial indicator (BlueDial) to record pavement deflection under moving wheel loads and a Bluetooth laser measure to track distance between the Benkelman beam and the vehicle. The MultiGage apps for iOS and Android and MultiGage Windows software for PC pair with both Bluetooth devices simultaneously to synchronize and log readings in real time.

Specifications
Bluetooth Dial Indicator BlueDial-LT

• Measurement ranges: 0.5 in (12.7 mm), 1 in (25.4 mm), 2 in (50 mm)
• Resolution: 0.0005 in (0.01 mm) and 0.00005 in (0.001 mm)
• Accuracy: ±0.001 in, ±0.0002 in, ±0.0004 in
• Wireless update rate: 8 Hz; transmission range: approx. 30 m (100 ft)
• Operating temperature: 32 to 122 °F
• Battery: 400 mAh rechargeable, approx. 50 hours

Bluetooth Laser Measure

• Range: up to 165 ft (50 m)
• Resolution: 1/32 in (0.5 mm)
• Accuracy: 1/16 in (1.5 mm)
• Wireless update rate: 2 Hz; transmission range: approx. 20 m (65 ft)
• Operating temperature: 14 to 113 °F
• Battery: 2x AAA

Software

• iOS: MultiGage Reader app for iPad/iPhone — connects to multiple devices, enables wireless reading and recording; Apple Watch companion app available.
• Android: MultiGage Android — supports multiple device connectivity on Android devices.
• Windows: MultiGage Windows — streams readings from multiple devices to a Windows PC (requires USB Bluetooth dongle).

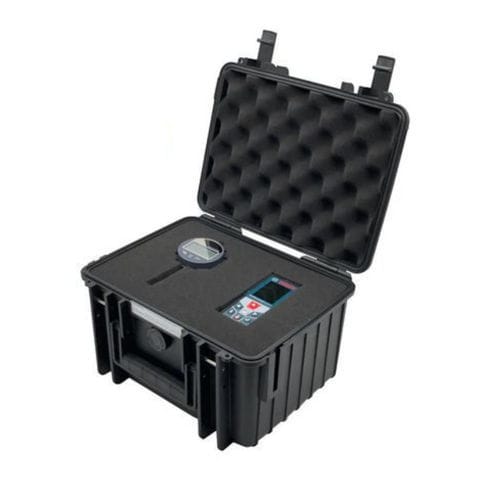

Included

• Bluetooth Dial Indicator x1
• Wireless Laser Measurer x1
• USB Charging Cable x1
• USB Power Adapter (US orders only) x1
• Protective Carrying Case x1
• BLE Dongle (optional) — required for PC use
• Extended Warranty (optional)

Technical specifications

• Brand: Motionics
• Product name: Wireless Benkelman Test Kit
• Model / Commercial name: Wireless Benkelman Test Kit (example SKU BNK-102)
• Available displacement gauge variants: BDLT-102, BDLT-103, BDLT-202, BDLT-203, BDLT-302 (see resolutions and ranges above)
• Wireless data rates: Dial indicator 8 Hz; Laser measure 2 Hz
• Wireless transmission ranges: Dial indicator ~30 m (100 ft); Laser measure ~20 m (65 ft)
• Operating temperatures: Dial indicator 32 to 122 °F; Laser measure 14 to 113 °F
• Power / battery: Dial indicator 400 mAh rechargeable (~50 hr); Laser measure 2x AAA
• Software compatibility: iOS (MultiGage Reader + Apple Watch companion), Android (MultiGage), Windows (MultiGage Windows with USB BLE dongle)
• Typical kit contents: BlueDial dial indicator, Bluetooth laser measurer, USB charging cable, USB power adapter (US only), carrying case; optional BLE dongle and extended warranty
