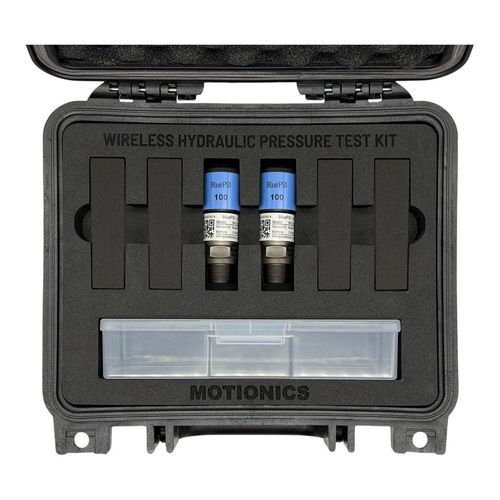

Pressure test kit WHS2000A1

temperaturecomputer-controlledfor pressure apparatus

Overview
Motionics BluePSI Standard wireless hydraulic pressure test kit enables faster, safer and more accurate pressure testing and monitoring for heavy equipment and industrial machinery. The modular kit uses high‑accuracy Bluetooth pressure sensors to remove long hoses and wired gauges, allowing remote monitoring of liquid and gas pressure and temperature. Multi-point real‑time readings and logging are available on iOS and Android via the MultiGage app, improving diagnostics, maintenance and repair workflows while keeping personnel at a safe distance from live systems.

Software
MultiGage companion app supports multiple device connections and records measurements wirelessly on iOS and Android devices. Standard kits are compatible with MultiGage for iOS/Android only (not MultiGage for Windows).

Apple Watch compatibility

• Apple Watch companion app for MultiGage Reader on iPhone
• View wireless sensor readings on the wrist
• Start/stop continuous logging or capture single readings from the watch

Included

• BluePSI Bluetooth pressure sensors (quantity depends on kit)
• Protective carrying case with custom laser-cut foam x 1
• BLE USB dongle x 1
• User guide x 1

Specs for BluePSI Standard model
Pressure measurement ranges:
BP2-XXX: 0–50 psi; 0–100 psi; 0–500 psi; 0–1,000 psi; 0–5,000 psi; 0–10,000 psi; 0–15,000 psi
BP2-XXXV: Vac–15 psi; Vac–800 psi
Pressure accuracy: ±0.25% FS
Proof pressure: 2 × measurement range
Burst pressure: 5 × measurement range
Temperature range: -20 to 85 °C (-4 to 185 °F)
Temperature reading accuracy: ±3 °C (±5.4 °F)
Wireless data rate: adjustable 1–10 Hz
Ingress protection: IP67
Transmission range: up to 30 m (100 ft)
Battery type: CR2050 or CR2032 (with spacer)
Battery life (room temp): up to 2 years at 5 s interval (CR2050); up to 2 months at 10 samples/s (CR2050)
Pressure port: 1/4"-18 NPT (except Vac–800 psi: 1/8"-27 NPT)
Realtime readings and onboard logging options (model-dependent)
Onboard data logging: BP2-XXX-01: No; BP2-XXX-02: Yes — BP2-XXXV-01: No; BP2-XXXV-02: Yes
Data logging rate: 10 Hz to 1 sample/hour (100 ms to 60 min interval)
Number of data logs: 16,384 (pressure only); 8,192 (pressure & temperature)

Technical specifications

• Model family: BluePSI Standard
• Pressure ranges: multiple up to 15,000 psi
• Accuracy: ±0.25% FS
• Proof pressure: 2× measurement range
• Burst pressure: 5× measurement range
• Operating temperature: -20 to 85 °C
• Temperature accuracy: ±3 °C
• Wireless rate: adjustable 1–10 Hz
• Ingress protection: IP67
• Transmission range: up to 30 m
• Battery: CR2050 or CR2032 (with spacer)
• Dimensions: 74.7 mm × 24.6 mm (without antenna)
• Pressure port: 1/4"-18 NPT (Vac–800 psi: 1/8"-27 NPT)
• Realtime readings and optional onboard data logging (model-dependent)
• Includes sensors, protective case with foam, BLE USB dongle and user guide
