Overview

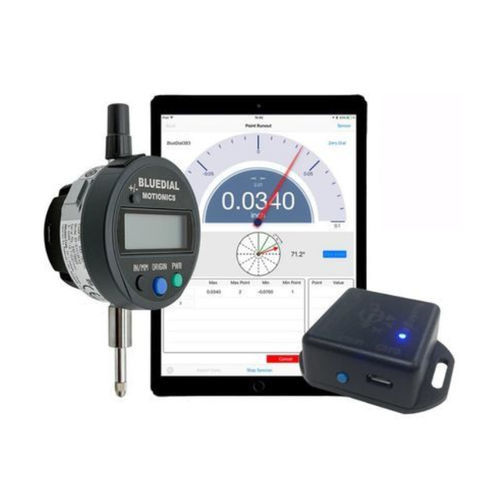

Motionics Wireless Rotor Runout Kit consists of a Bluetooth dial indicator (BlueDial), a Bluetooth angle sensor (BlueAngle) and the iPad Runout application. BlueAngle attaches to the end face or circumference of a rotor with a magnetic base and continuously measures rotating angle while BlueDial measures radial displacement at the edge of the rotating plane. Both sensors transmit data wirelessly to the iPad and the Runout app synchronizes displacement and angle readings to reconstruct the rotor contour for runout analysis and balancing.

Functionality
The Runout app visualizes collected data with a configurable probe meter for BlueDial readings (selectable tick counts and adjustable range/resolution). An analog-style needle displays displacement; BlueAngle is shown as a rotating arrow for angular position. The system supports connection of up to 9 displacement sensors simultaneously to test multiple planes in one session. After testing users can export raw data or generate and save a PDF test report on the iPad; a local record manager stores and retrieves previous test sessions and reports.

App Features

• Simultaneous wireless displacement and rotating-angle measurement
• Multi-sensor connectivity (test up to 9 planes simultaneously)
• Applicable to horizontal and vertical rotors
• User-defined number of measurement points around rotor circumference
• Sensor status page with signal strength, battery level and editable display name
• Probe meter with adjustable range/resolution and rotating needle
• Cartesian (angle-reading) and polar plots
• Data smoothing via moving average
• Multiple export options and PDF test report generation
• Local test record manager to retrieve previous data and reports

Included in the Kit

• BlueDial x1
• BlueAngle x1
• USB Charging Cable x2
• USB Power Adapter (US orders only) x2
• Protective Carrying Case x1
• Runout App for iPad x1
• User Manual x1
• iPad with Protective Case (Optional)
• Extended Warranty (Optional)

Note
Note: The kit is supplied with one dial. Additional dials can be added to the configuration on request.

Technical Specifications

• BlueDial models: BD10-783 and BD10-793
• BlueDial measurement range: 0.5" / 12.7 mm
• BlueDial resolution: BD10-783 = 0.0005" / 0.01 mm; BD10-793 = 0.0001" / 0.001 mm
• BlueDial accuracy: BD10-783 = 0.0008"; BD10-793 = 0.00012"
• BlueDial wireless data rate: 10 Hz
• BlueDial wireless transmission range: 65 ft / 20 m (indoors) / 100 ft / 30 m (outdoors)
• BlueDial operating temperature: 32 to 122 °F
• BlueDial battery: 400 mAh rechargeable
• BlueDial battery life: 60 hrs
• BlueAngle measurement range: 360°
• BlueAngle resolution: 0.1°
• BlueAngle wireless data rate: 50 Hz
• BlueAngle wireless transmission range: up to 65 ft / 20 m
• BlueAngle dimensions: 1.58 x 1.58 x 0.79"
• BlueAngle operating temperature: 32 to 122 °F
• BlueAngle battery: 150 mAh rechargeable
• BlueAngle battery life: 10 hrs
