Machine monitoring vibration analyzer SWK1

for machine condition monitoringfor predictive maintenanceportable

Overview
ShakerWatch by Motionics is an iPad-based wireless vibration measurement and analysis tool designed for vibratory screens and shale shakers. It uses a tri-axial accelerometer with a magnetic base to attach to test points and measure motion in three directions. Bluetooth Low Energy connectivity eliminates cables and connectors to improve safety, ease of use and durability.

Key Capabilities
ShakerWatch performs X-Y orbit tests with automatic calculations for RPM, G-force, stroke and angle. The system also supports bump tests, side displacement testing and support-structure vibration tests to evaluate shaker performance and machine condition over time.

Product Overview & Demo
Product overview and demo videos illustrate typical test procedures and workflows, including orbit tests, bump tests and battery replacement. These resources help technicians standardize inspections and interpret results efficiently.

Software

• ShakerWatch iPad app (connects to the wireless tri-axial accelerometer)
• Wireless tri-axial vibration signal transmission (BLE)
• Automatic sensor tilt-angle compensation
• Orbit test with auto RPM, G-force, stroke and angle calculations
• Interactive time waveform, FFT spectrum and X-Y orbit plot (G Motion Plot)
• Color-coded side displacement tests for quick pass/fail assessment
• Bump test with automatic dominant frequency detection
• Attach test photos and notes to records
• Auto PDF test report generation
• Local database and test record manager
• Export test data to Excel and PDF

Included Items

• ShakerWatch wireless accelerometer
• CR2477 coin batteries ×2
• User guide

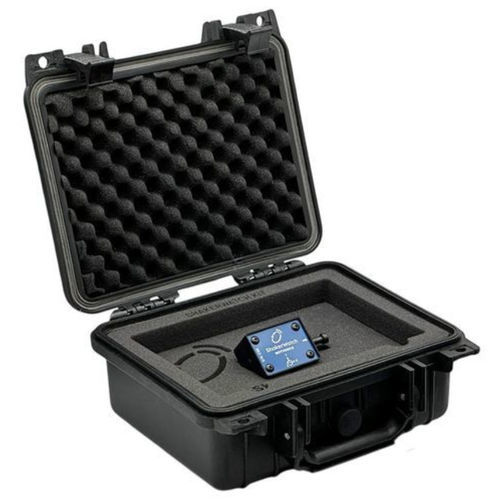

• Protective ShakerWatch case
• ShakerWatch iPad application
• Optional: iPad with protective case
• Optional: 3-year extended warranty

Technical Specification
ShakerWatch — Specification
Accelerometer type: Tri-axial
Measurement range: ±40g
Resonant frequency: ≈5500 Hz
Sampling rate: 500–4000 Hz (adjustable)
Data block size: 256–4096 samples (adjustable)
Connectivity: Bluetooth Low Energy (BLE)
Data transmission range: 98 ft (30 m)
Weight: 0.380 lb (172 g)
Dimensions: 3.2" W × 2.0" D × 1.6" H (81 × 52 × 40 mm)
Operating temperature: -4 to 140°F (-20 to 60°C)
Ingress protection: IP66
Magnetic base: round, 35 lb (15.88 kg) pull
Battery: Lithium CR2477 3VDC (replaceable)
Battery life: ~500 hours
Software compatibility: iPadOS

Technical features

• Accelerometer: tri-axial
• Measurement range: ±40g
• Sampling rate: 500–4000 Hz (adjustable)
• Data block size: 256–4096 samples (adjustable)
• Connectivity: Bluetooth Low Energy (BLE)
• Transmission range: 98 ft (30 m)
• IP rating: IP66
• Battery type: CR2477 (replaceable), battery life ~500 hrs
• Weight: 172 g; Dimensions: 81 × 52 × 40 mm
• Software: ShakerWatch iPad app (iPadOS)
