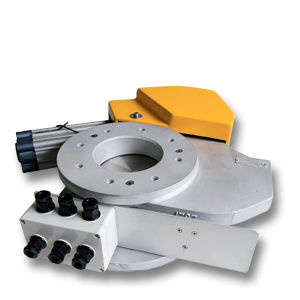

Disc valve 100 - 300 mm | 320
pneumatically-operatedisolationfor chemicals

disc valve
disc valve
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
pneumatically-operated
Function
isolation
Media
for chemicals
DN

Min.: 100 mm
(3.937 in)

Max.: 300 mm
(11.811 in)

Description

The Mucon Disc Valve is a radially pivoting isolation Swing Gate Valve suitable for applications involving temperature and pressure. The Easy Maintenance Disc Valve is an advanced version, which allows the removal of the internal moving parts while the valve body remains in-situ. The inlet liner is separate and does not even have to be made from the same material as the valve body. Unlike many conventional slide valves, the Disc Valve does not jam or leak, due to its unique angled seat and floating disc arrangement. The Easy Maintenance Disc Valve is available in 100mm & 200mm sizes only with three main construction materials; aluminium, cast iron and stainless steel. Hand lever operated versions are also available. Customers have reported Disc Valves (Swing Gate Valves) completing many thousands of operations before any attention is required. The Swing Gate Valve was born out of a valve specification which encompasses all the advantages found in slide and butterfly valves, but with none of the inherent disadvantages. A radially pivoted arm supports a free floating disc. The arm allows the disc to swing in an arc towards an angled seating face. The angled face ensures the disc only makes contact at the last moment causing a mild wedging action. Construction Three materials of construction including aluminium alloy, cast iron and stainless steel Flanges drilled to BS4504 PN10- PCD & No. of holes only, not hole size
