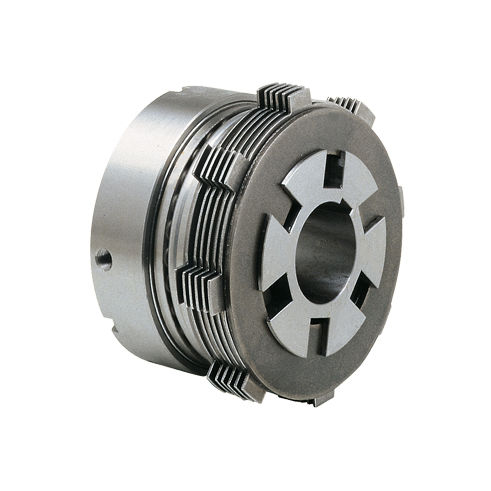

multiple-disc clutch / hydraulic
IS series

Add to MyDirectIndustry favorites
multiple-disc clutch / hydraulic multiple-disc clutch / hydraulic - IS series
{{requestButtons}}

Characteristics

  • Type:

    multiple-disc

  • Operation:

    hydraulic

  • Torque:

    Max.: 1,050 Nm (774.4403 ft.lb)

    Min.: 45 Nm (33.1903 ft.lb)

  • Rotational speed:

    Max.: 4,500 rpm (28,274.33 rad.min-1)

    Min.: 2,000 rpm (12,566.37 rad.min-1)

Description

Multidisc disc hydraulic clutch with static cylinder.
Used mainly for oil bath applications, in the presence of oil mist and in dry applications at low rpm.
Transmission of motion between the internal shaft fastened to the central hub (1) and the housing (14) splined to the external discs.
Static moments (MS) from 45 to 1050 Nm.
