Toothed clutch ESBR/Z electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- electromagnetic
- Torque
Min.: 20 Nm
(14.751243 ft.lb)Max.: 12,000 Nm
(8,850.745791 ft.lb)- Rotational speed
Min.: 1,300 rpm
(8,168.1409 rad.min-1)Max.: 8,500 rpm
(53,407.0751 rad.min-1)- Power
Min.: 10 W
Max.: 360 W
Description

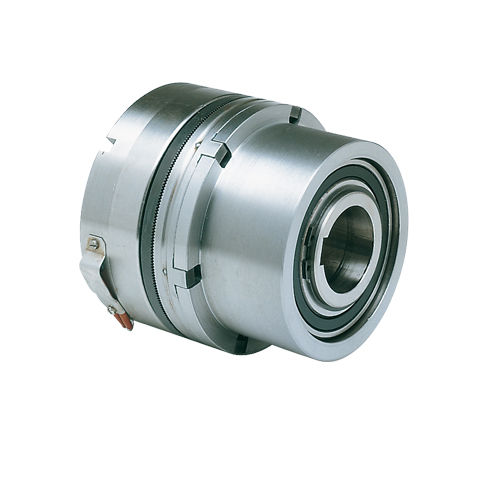

Electromagnetic tooth-type coupling with transmission hub, static magnet, without collector ring.
Power supply voltage: 24V cc. – 0% + 15%.
Used for oil and dry applications.
Mounted easily with the drive shaft splined to the hub (8), while the transmission hub (5) is fitted with the crown wheel, flange, etc. for transmitting motion to a parallel shaft.
