Pneumatic torque limiter GDPR
with sprocket wheel

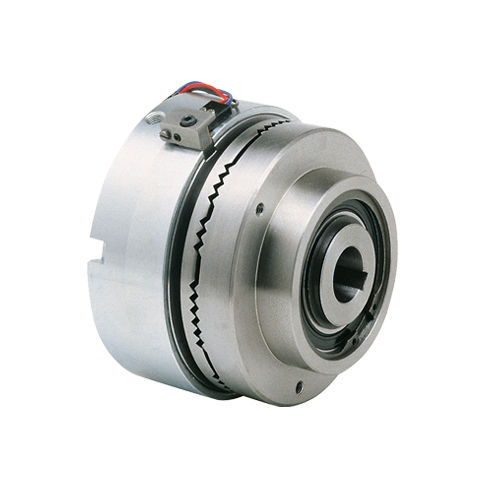

Pneumatic torque limiter - GDPR - MWM FRENI-FRIZIONI - with sprocket wheel
Pneumatic torque limiter - GDPR - MWM FRENI-FRIZIONI - with sprocket wheel
Pneumatic torque limiter - GDPR - MWM FRENI-FRIZIONI - with sprocket wheel - image - 2
Pneumatic torque limiter - GDPR - MWM FRENI-FRIZIONI - with sprocket wheel - image - 3
Add to favorites
Compare this product
Go to the MWM FRENI-FRIZIONI website for more information

Characteristics

Operation
with sprocket wheel, pneumatic
Torque

Min.: 78 Nm
(57.529848 ft.lb)

Max.: 1,300 Nm
(958.830794 ft.lb)

Diameter

Min.: 14 mm
(0.55 in)

Max.: 68 mm
(2.68 in)

Rotational speed

Min.: 1,400 rpm
(8,796.4594 rad.min-1)

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Description

Torque limiting coupling with front toothing, axial sliding and electric signal. For dry and oil bath applications. The working torque is adjusted by varying the supply pressure. A microswitch trips whenever there is an overload. Useful for connecting a shaft to a flange or a pulley. The shaft is splined to the central hub (1), while the flange is fastened to the transmission (5).
