Disc clutch MPGpneumaticwith flexible coupling
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- pneumatic
- Other characteristics
- with flexible coupling
- Torque
Min.: 20 Nm
(14.7512 ft.lb)Max.: 350 Nm
(258.1468 ft.lb)- Rotational speed
Min.: 1,400 rpm
(8,796.46 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)
Description

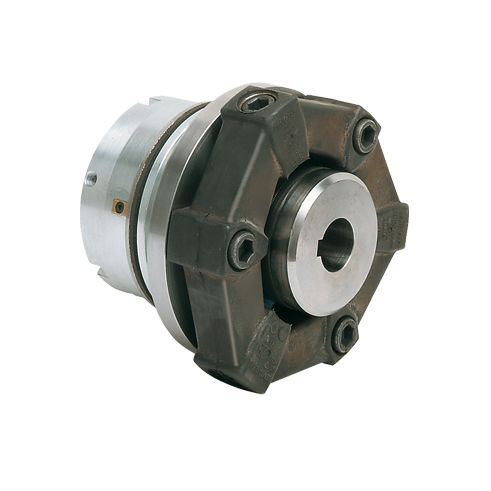

Single-disc pneumatic clutch with flexible coupling.
Used for dry applications.
Mounted between two opposite shafts, by splining the hub (1) to the drive shaft and the driven shaft on the hub of the flexible coupling (15)
