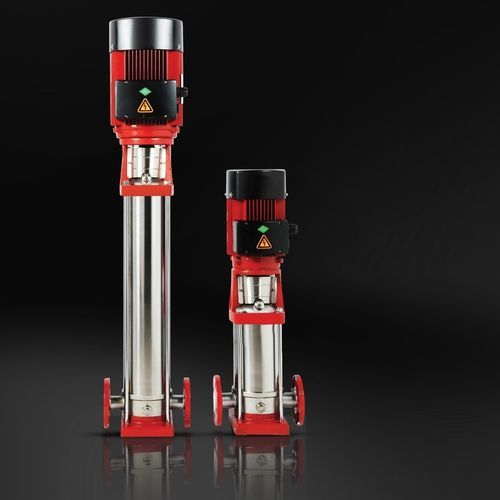

Vertical pump NF-VL / NF-VLS
waterwith electric motorimpeller

vertical pump
vertical pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with electric motor
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
for industrial applications, firefighting
Material
stainless steel
Voltage
400 V, 380 V, 460 V
Protection level
IP55
Other characteristics
compact, multi-stage, low-noise, in-line, vertical, seal, low-capacity, low-capacity
Flow

4 m³/h, 8 m³/h, 16 m³/h
(141.25867 ft³/h, 282.51733 ft³/h, 565.03467 ft³/h)

Pressure

16 bar, 21 bar, 23 bar
(232.06 psi, 304.579 psi, 333.587 psi)

Power

Max.: 18.5 kW
(25.15 hp)

Min.: 0.37 kW
(0.5 hp)

Fluid temperature

Max.: 120 °C
(248 °F)

Min.: -15 °C
(5 °F)

Weight

Max.: 190 kg
(418.88 lb)

Min.: 20 kg
(44.09 lb)

Description

NF-VL / NF-VLS is a vertical multistage in-line pump series with all wet parts made of stainless steel. It is suitable for a variety of different applications involving various liquids from potable water to industrial effluent and covers a wide range of flow and pressure requirements. The major features of this series pumps are efficient operation, low noise, compact structure, light weight, easy to service, good seal performance etc. Its high head low-capacity performance range makes it especially suitable for use as a pressure maintenance pump (Jockey Pump) in firefighting applications and it meets NFPA 20 requirements for Jockey Pumps. Each pump set is tested in our factory, prior to dispatch, to confirm that the performance is achieved per the specified requirements. • Reliable Performance • Easy to Service • Efficient Operation • Stringent Test • Quality Materials • Longer Service Life
