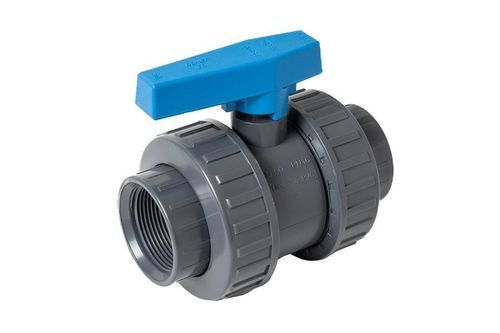

Ball valve BVDL11 seriesleverfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- threaded, female-female, seat, double
- Material
- PVC-U
- Other characteristics
- with threaded connection
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 16 bar
(232.1 psi)
Description
Short description
Double union ball valve with adjustable seat & female threaded ends.
Product information
Datasheet - Dimensions (table)
Code | G | DN | L | Z | H | A | B | C | E | F | PN | Gr | Pack | BOX
BVDL11N020 | 1/2" | 15 | 16 | 49 | 81 | 50 | 10 | 48 | 39 | 19 | 16 | 130 | 60 | S
BVDL11N025 | 3/4" | 20 | 19 | 56 | 94 | 60 | 11 | 54 | 47 | 22 | 16 | 210 | 90 | M
BVDL11N032 | 1" | 25 | 22 | 63 | 107 | 68 | 13 | 62 | 55 | 25 | 16 | 310 | 60 | M
BVDL11N040 | 1"1/4 | 32 | 26 | 72 | 124 | 80 | 18 | 75 | 60 | 30 | 16 | 450 | 35 | M
BVDL11N050 | 1"1/2 | 40 | 31 | 84 | 146 | 96 | 20 | 87 | 68 | 35 | 16 | 730 | 24 | M
BVDL11N063 | 2" | 50 | 38 | 94 | 170 | 116 | 20 | 101 | 80 | 40 | 16 | 1220 | 12 | M
BVDL11N075 | 2"1/2 | 65 | 44 | 130 | 218 | 145 | 25 | 123 | 90 | 45 | 10 | 2300 | 12 | M
BVDL11N090 | 3" | 80 | 51 | 148 | 250 | 166 | 28 | 138 | 100 | 50 | 10 | 3650 | 3 | M
BVDL11N110 | 4" | 100 | 61 | 168 | 290 | 210 | 28 | 160 | 120 | 60 | 10 | 6000 | 2 | M
Summary
Double union ball valve with adjustable seat & female threaded ends.
Caractéristiques / spécifications techniques
Double union ball valve with adjustable seat & female threaded ends.
Product information
- Brand: U-PVC Ball Valves
- Category: UPVC Ball Valves
- SKU:
Datasheet - Dimensions (table)
Code | G | DN | L | Z | H | A | B | C | E | F | PN | Gr | Pack | BOX
BVDL11N020 | 1/2" | 15 | 16 | 49 | 81 | 50 | 10 | 48 | 39 | 19 | 16 | 130 | 60 | S
BVDL11N025 | 3/4" | 20 | 19 | 56 | 94 | 60 | 11 | 54 | 47 | 22 | 16 | 210 | 90 | M
BVDL11N032 | 1" | 25 | 22 | 63 | 107 | 68 | 13 | 62 | 55 | 25 | 16 | 310 | 60 | M
BVDL11N040 | 1"1/4 | 32 | 26 | 72 | 124 | 80 | 18 | 75 | 60 | 30 | 16 | 450 | 35 | M
BVDL11N050 | 1"1/2 | 40 | 31 | 84 | 146 | 96 | 20 | 87 | 68 | 35 | 16 | 730 | 24 | M
BVDL11N063 | 2" | 50 | 38 | 94 | 170 | 116 | 20 | 101 | 80 | 40 | 16 | 1220 | 12 | M
BVDL11N075 | 2"1/2 | 65 | 44 | 130 | 218 | 145 | 25 | 123 | 90 | 45 | 10 | 2300 | 12 | M
BVDL11N090 | 3" | 80 | 51 | 148 | 250 | 166 | 28 | 138 | 100 | 50 | 10 | 3650 | 3 | M
BVDL11N110 | 4" | 100 | 61 | 168 | 290 | 210 | 28 | 160 | 120 | 60 | 10 | 6000 | 2 | M
Summary
Double union ball valve with adjustable seat & female threaded ends.
Caractéristiques / spécifications techniques
- Type: UPVC Ball Valves
- Brand: U-PVC Ball Valves
- Model: BVDL11
- Function: Double union ball valve with adjustable seat and female threaded ends
- Available variant codes / sizes: BVDL11N020, BVDL11N025, BVDL11N032, BVDL11N040, BVDL11N050, BVDL11N063, BVDL11N075, BVDL11N090, BVDL11N110
- Datasheet columns provided per variant: G, DN, L, Z, H, A, B, C, E, F, PN, Gr, Pack, BOX
