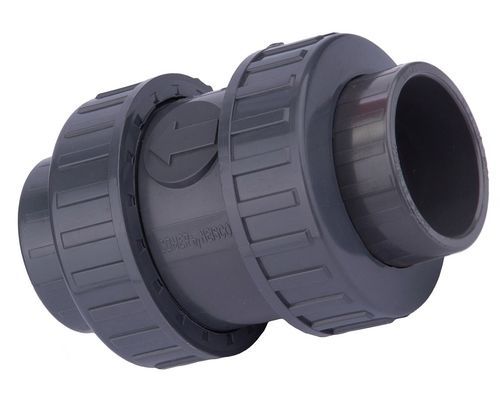

Ball check valve CVD13 series

weldfemalebackflow

Short description
Check valve with BS female socket for solvent welding, manufactured in UPVC for corrosion-resistant pipeline applications.

Product family
UPVC VALVES - Check Valves

Key information

• Type: Check Valves
• Brand: U-PVC Check Valves
• Material: UPVC
• Connection: BS female socket for solvent welding
• Pressure rating (PN): see variants (typically 10–16)

Summary
Compact UPVC check valve CVD13 designed to prevent backflow in water and chemical piping systems. Installation is by solvent-weld into a BS female socket, providing a secure, leak-minimising joint. Available in multiple nominal diameters to match standard pipeline sizes.

Datasheet (rows)
Code | d | DN | L | Z | H | A | PN | Gr | Pack | Box
CVD13N0200 | 1/2" | 15 | 16 | 49 | 81 | 50 | 16 | 110 | 60 | S
CVD13N0250 | 3/4" | 20 | 19 | 56 | 94 | 60 | 16 | 168 | 90 | M
CVD13N0320 | 1" | 25 | 22 | 63 | 107 | 68 | 16 | 246 | 60 | M
CVD13N0400 | 1"1/4 | 32 | 26 | 72 | 124 | 80 | 16 | 360 | 35 | M
CVD13N0500 | 1"1/2 | 40 | 31 | 84 | 146 | 96 | 16 | 552 | 18 | M
CVD13N0630 | 2" | 50 | 38 | 94 | 170 | 116 | 16 | 931 | 10 | M
CVD13N0750 | 2"1/2 | 65 | 44 | 130 | 218 | 145 | 10 | 1740 | 5 | M
CVD13N0900 | 3" | 80 | 51 | 148 | 250 | 166 | 10 | 2810 | 3 | M
CVD13N1100 | 4" | 100 | 61 | 168 | 290 | 210 | 10 | 4690 | 2 | M

Available variants

• CVD13N0200 — 1/2" (DN15)
• CVD13N0250 — 3/4" (DN20)
• CVD13N0320 — 1" (DN25)
• CVD13N0400 — 1 1/4" (DN32)
• CVD13N0500 — 1 1/2" (DN40)
• CVD13N0630 — 2" (DN50)
• CVD13N0750 — 2 1/2" (DN65)
• CVD13N0900 — 3" (DN80)
• CVD13N1100 — 4" (DN100)

Notes
Material: UPVC. Connection type: BS female socket for solvent welding.

Technical specifications

• Type: Check Valves
• Brand: U-PVC Check Valves
• Material: UPVC
• Connection: BS female socket for solvent welding
• Pressure rating (PN): ranges shown per variant (typ. 10–16)
• Available codes and sizes: CVD13N0200, CVD13N0250, CVD13N0320, CVD13N0400, CVD13N0500, CVD13N0630, CVD13N0750, CVD13N0900, CVD13N1100 (see datasheet rows for dimensions)
• Gr and Pack/Box data available per variant in datasheet
