Ball check valve CVDC10 series
for industrial applicationsPVC-U

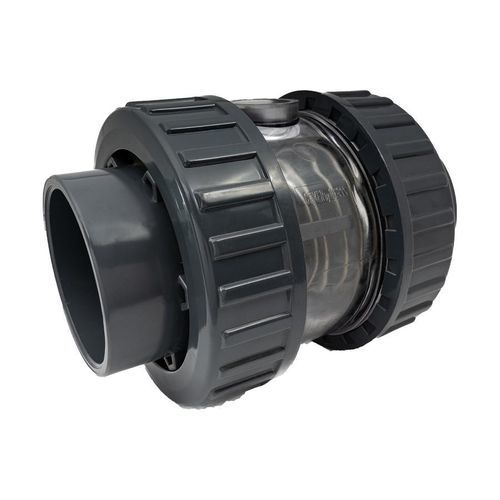

Ball check valve - CVDC10 series - NEISCO FOR MODERN WATER SYSTEMS PRODUCTION - for industrial applications / PVC-U
Ball check valve - CVDC10 series - NEISCO FOR MODERN WATER SYSTEMS PRODUCTION - for industrial applications / PVC-U
Ball check valve - CVDC10 series - NEISCO FOR MODERN WATER SYSTEMS PRODUCTION - for industrial applications / PVC-U - image - 2
Add to favorites
Compare this product
Go to the NEISCO FOR MODERN WATER SYSTEMS PRODUCTION website for more information

Characteristics

Type
ball
Applications
for industrial applications
Material
PVC-U
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Pressure

Min.: 10 bar
(145 psi)

Max.: 16 bar
(232.1 psi)

Description

Short description
  • Check ball valve with transparent body


Product information
  • Type: Check Valves
  • Brand: U-PVC Check Valves
  • SKU:
  • Reviews: 32 reviews


Summary
  • Check ball valve with transparent body, commercial model CVDC10. Available in multiple nominal diameters for industrial fluid systems.


Datasheet (table)
Code | d | DN | L | Z | H | A | PN | Gr | Pack | Box
CVDC10N020 | 20 | 15 | 16 | 49 | 81 | 50 | 16 | 110 | 60 | S
CVDC10N025 | 25 | 20 | 19 | 56 | 94 | 60 | 16 | 170 | 90 | M
CVDC10N032 | 32 | 25 | 22 | 63 | 107 | 68 | 16 | 250 | 60 | M
CVDC10N040 | 40 | 32 | 26 | 72 | 124 | 80 | 16 | 370 | 35 | M
CVDC10N050 | 50 | 40 | 31 | 84 | 146 | 96 | 16 | 560 | 18 | M
CVDC10N063 | 63 | 50 | 38 | 94 | 170 | 116 | 16 | 980 | 10 | M
CVDC10N075 | 75 | 65 | 44 | 130 | 218 | 145 | 10 | 1740 | 5 | M
CVDC10N090 | 90 | 80 | 51 | 148 | 250 | 166 | 10 | 2770 | 3 | M
CVDC10N110 | 110 | 100 | 61 | 168 | 290 | 210 | 10 | 4740 | 2 | M

Available documentation
  • Datasheets available for variants: CVDC10N020, CVDC10N025, CVDC10N032, CVDC10N040, CVDC10N050, CVDC10N063, CVDC10N075, CVDC10N090, CVDC10N110


3D / 360
  • Interactive 360 / 3D viewer available for CVDC10 (product 3D viewer)


Technical specifications
  • Type: Check Valves (UPVC valves)
  • Brand: U-PVC Check Valves
  • Commercial model: CVDC10
  • Description: Check ball valve with transparent body
  • Status: New (badge shown), Sale (badge shown)
  • Reviews: 32 reviews (displayed)
  • Datasheet table: includes variant codes CVDC10N020 through CVDC10N110 with dimensions and packing data (see datasheet table above)
  • 3D viewer / mechanism / disassemble / cross-section available
