Three-phase servo-drive CWDS556

three-phase stepper20-54 Vcompact

Overview

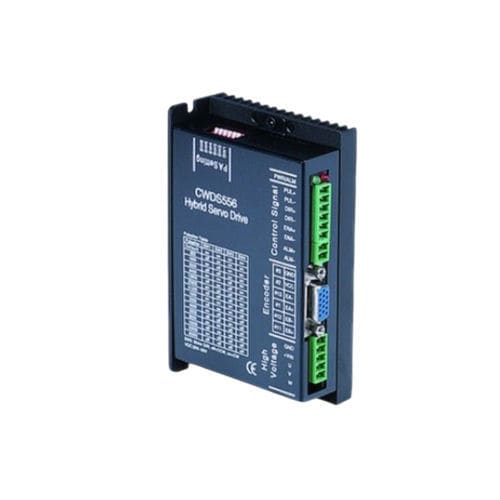

The CWDS556 is a 3-phase closed-loop stepper servo driver delivering up to 5.6A at 20–50V DC. It combines 3-phase closed-loop control with DSP plus vector control to provide smooth motion, high positioning reliability and avoidance of missed steps in industrial motion applications. The unit is compact (118 x 75 x 34 mm) for easy integration into machine control enclosures.

Key Highlights

• 3-phase closed-loop control for stable, smooth motion
• Eliminates missed steps and improves positioning accuracy
• Up to 5.6 A output current
• 32-bit DSP with vector control algorithm
• Up to 30% speed performance improvement vs. comparable drivers
• Compact 118 x 75 x 34 mm form factor

Quick Specifications

• Phase: 3
• Output Current (A): up to 5.6
• Input Voltage (VDC): 20 – 50
• Microstep Resolution: 51,200 steps/rev
• Encoder Resolution: 1000 PPR
• Weight: 0.255 kg (product card) / 0.3 kg (full spec table)
• Dimensions (mm): 118 x 75 x 34

Electrical Specifications
Input Voltage — 20–50 VDC
Output Current — 0–5.6 A
Number of Phases — 3
Encoder Resolution — 1000 PPR
Control Signal — Pulse/Direction or CW/CCW
Pulse Frequency — 0–200 kHz
Processor — 32-bit DSP (DSP + vector control)
Microstep — 51,200 steps/rev
Dimensions — 118 x 75 x 34 mm
Weight — 0.255–0.3 kg (depending on source)

Mechanical Drawing
Mechanical drawing available for CWDS556 with detailed dimensions and mounting hole locations for panel or chassis installation.

Features / Technical Specifications

• Input Voltage: 20–50 VDC
• Output Current: up to 5.6 A
• Number of Phases: 3
• Encoder Resolution: 1000 PPR
• Control Signal: Pulse/Direction or CW/CCW
• Pulse Frequency: 0–200 kHz
• Processor: 32-bit DSP with vector control
• Microstep Resolution: 51,200 steps/rev
• Dimensions: 118 x 75 x 34 mm
• Weight: 0.255 kg (product card) / 0.3 kg (spec table)
