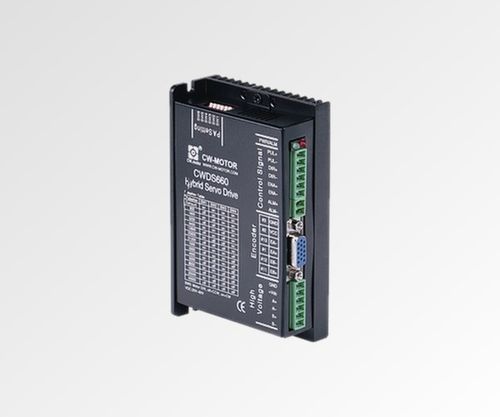

DC servo-drive CWDS660

two-phasetwo-phase stepperwith encoder

Product Overview
The CWDS660 is a 2-phase closed-loop stepper servo driver designed to overcome the limitations of open-loop stepper systems. It supports up to 6 A at 20-60 VDC and uses a 32-bit DSP with vector control to prevent missed steps, reduce heat generation and improve speed performance by approximately 30%. Factory vector control eliminates the need for parameter tuning.

Key Highlights

• Closed-loop control — eliminates missed steps
• 32-bit DSP with vector control algorithm
• Approx. 30% speed improvement versus open-loop
• Reduced heat generation
• No parameter tuning required
• Compact 118 x 75 x 34 mm form factor

Quick Specs

• Phase: 2
• Output Current (A): 0–6.0 (rated up to 6 A)
• Input Voltage (VDC): 20–60
• Microstep Resolution: 51,200 steps/rev
• Encoder Resolution: 1000 PPR
• Weight: 0.255–0.3 kg
• Dimensions (mm): 118 x 75 x 34

Electrical Specifications
Input Voltage: 20–60 VDC
Output Current: 0–6 A
Encoder Resolution: 1000 PPR
Control Signal: Pulse/Direction or CW/CCW
Pulse Frequency: 0–200 kHz
Processor: 32-bit DSP
Dimensions: 118 x 75 x 34 mm
Weight: 0.255–0.3 kg

Mechanical Drawing
Mechanical drawing available for the CWDS660 (illustration/diagram provided on the product page).

Technical specifications

• Model: CWDS660
• Phase: 2
• Input Voltage: 20–60 VDC
• Output Current: 0–6 A (rated up to 6 A)
• Microstep Resolution: 51,200 steps/rev
• Encoder Resolution: 1000 PPR
• Control Signal Types: Pulse/Direction or CW/CCW
• Maximum Pulse Frequency: 0–200 kHz
• Processor: 32-bit DSP
• Performance: ~30% speed improvement over open-loop, reduced heat generation
• Form Factor / Dimensions: 118 x 75 x 34 mm
• Weight: listed as 0.255 kg (product card) and 0.3 kg (full specifications)
• No parameter tuning required (factory/vector control tuning)
