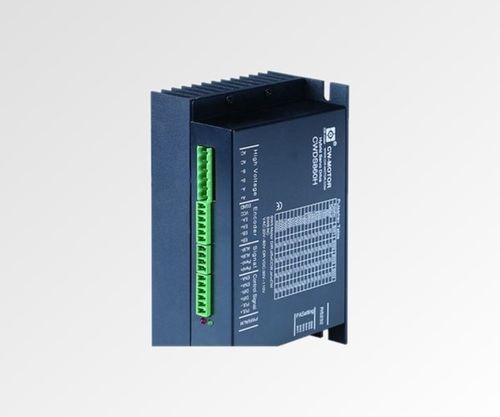

DC servo-drive CWDS860H

ACtwo-phasetwo-phase stepper

Product overview
The CWDS860H is a 2-phase closed-loop stepper servo driver supporting up to 8 A with a wide input range (20–90 VAC or 24–110 VDC). The 108 x 100 x 60 mm enclosure improves heat dissipation for industrial closed-loop motion control applications.

Key highlights

• Closed-loop control — no missed steps
• Wide voltage range: 20–90 VAC or 24–110 VDC
• 8 A output current
• 32-bit DSP with vector control algorithm
• Approx. 30% speed improvement vs. previous generation
• Compact 108 x 100 x 60 mm enclosure

Summary cards / quick specs
Phase — 2
Output Current (A) — 0–8.0
Input Voltage — 20–90 VAC or 24–110 VDC
Microstep — 51200 steps/rev
Dimensions (mm) — 108 x 100 x 60
Control Signal — Pulse / Direction

Full specifications
Input Voltage — 20–90 VAC or 24–110 VDC
Output Current — 0–8 A
Encoder Resolution — 1000 PPR
Control Signal — Pulse/Direction or CW/CCW
Pulse Frequency — 0–200 kHz
Processor — 32-bit DSP
Dimensions — 108 x 100 x 60 mm
Weight — 0.9 kg

Mechanical drawing
Mechanical drawing provided for mounting and dimensional reference (108 x 100 x 60 mm enclosure).

Technical specifications

• Model: CWDS860H
• Brand: NEOTON MOTOR
• Type: 2-phase closed-loop stepper servo driver
• Output current: up to 8.0 A
• Input voltage: 20–90 VAC or 24–110 VDC
• Microstepping: 51200 steps/rev
• Encoder resolution: 1000 PPR
• Control signals: Pulse/Direction or CW/CCW
• Pulse frequency: 0–200 kHz
• Processor: 32-bit DSP with vector control algorithm
• Performance: ~30% speed improvement vs. prior generation
• Enclosure dimensions: 108 x 100 x 60 mm
• Weight: 0.9 kg
