3-phase servo-drive SS2206

three-phase stepper110-230 Vclosed-loop

Product Overview

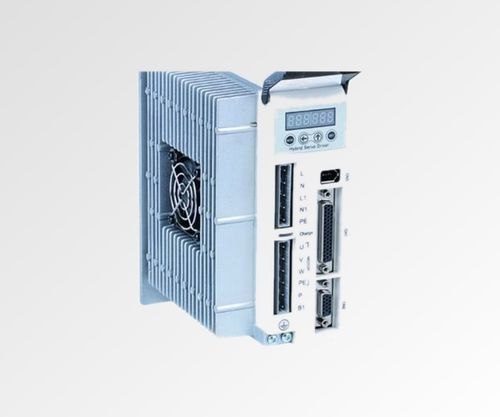

The SS2206 is a 3-phase closed-loop stepper servo driver designed for international industrial applications. It accepts 110–230VAC input, delivers up to 6A output current, and is housed in a compact 180 x 140 x 70 mm enclosure. The unit integrates a 32-bit DSP with vector control to improve dynamic response and supports high microstep resolution and encoder feedback for precise closed-loop operation.

Key Highlights

• 3-phase closed-loop control
• Wide AC input range: 110–230VAC
• Compact enclosure: 180 x 140 x 70 mm
• Output current up to 6A (0–6A)
• 32-bit DSP with vector control algorithm
• Approx. 30% speed improvement (manufacturer claim)

Quick Specifications

• Phases: 3
• Output current (A): 6.0 (key spec) / 0–6A (electrical table)
• Input voltage (VAC): 110–230
• Microstep resolution: 51200 steps/rev
• Encoder resolution: 1000 PPR
• Weight: 1.395 kg (product card) / 1.5 kg (electrical specs table)
• Dimensions (mm): 180 x 140 x 70

Electrical Specifications

• Input voltage: 110–230VAC
• Output current: 0–6A
• Number of phases: 3
• Encoder resolution: 1000 PPR
• Control signal: Pulse/Direction or CW/CCW
• Pulse frequency: 0–200 kHz
• Processor: 32-bit DSP
• Dimensions: 180 x 140 x 70 mm
• Weight: 1.5 kg

Mechanical Drawing
Mechanical drawing is available for the SS2206; refer to product images for dimensional details.

Technical specifications

• Model: SS2206
• Topology: 3-phase closed-loop stepper servo driver
• Input voltage: 110–230VAC
• Output current: up to 6A (0–6A)
• Microstep resolution: 51200 steps/rev
• Encoder resolution: 1000 PPR
• Control signals supported: Pulse/Direction or CW/CCW
• Pulse frequency range: 0–200 kHz
• Processor: 32-bit DSP with vector control algorithm
• Performance: ~30% speed improvement (per product claims)
• Dimensions: 180 x 140 x 70 mm
• Weight: listed as 1.395 kg (product card) and 1.5 kg (electrical specs table)
