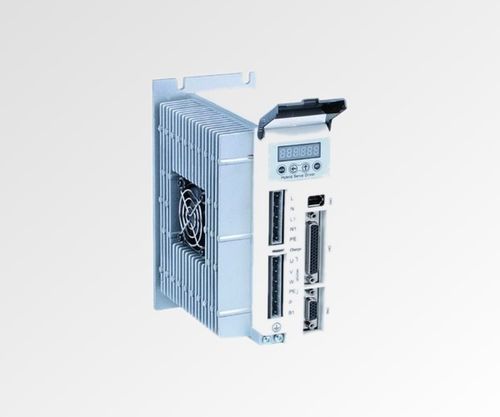

3-phase servo-drive SS1106

stepperclosed-loop

Product Overview
The SS1106 is a 3-phase closed-loop stepper servo driver with AC mains input (70-130VAC) housed in a 180 x 140 x 70 mm enclosure. It supports up to 6 A output current and provides smooth, precise 3-phase closed-loop operation suitable for industrial automation systems powered from AC mains.

Key Highlights

• 3-phase closed-loop control
• AC mains input (70-130VAC)
• Enclosure 180 x 140 x 70 mm
• 6 A maximum output current
• 32-bit DSP with vector control algorithm
• ~30% speed improvement vs previous generation

Quick Specs

• Phase: 3
• Output current (A): 6.0
• Input voltage (VAC): 70–130
• Microstep resolution: 51200 steps/rev
• Dimensions (mm): 180 x 140 x 70
• Control signal: Pulse/Direction

Electrical Specifications
Input voltage: 70–130 VAC
Output current: 0–6 A
Number of phases: 3
Encoder resolution supported: 1000 PPR
Control signal modes: Pulse/Direction or CW/CCW
Pulse frequency: 0–200 kHz
Processor: 32-bit DSP
Dimensions: 180 x 140 x 70 mm
Weight: 1.5 kg

Mechanical
Mechanical drawing available showing mounting points and enclosure dimensions for the SS1106 (180 x 140 x 70 mm).

Features / Technical Specifications

• Model: SS1106
• Type: 3-phase closed-loop stepper servo driver
• Input voltage: 70–130 VAC
• Maximum output current: 6 A
• Microstepping resolution: 51200 steps/rev
• Encoder resolution supported: 1000 PPR
• Control signal modes: Pulse/Direction or CW/CCW
• Pulse frequency range: 0–200 kHz
• Processor: 32-bit DSP with vector control algorithm
• Performance: ~30% speed improvement vs previous generation
• Enclosure dimensions: 180 x 140 x 70 mm
• Weight: 1.5 kg
