Ball valve F-530-S6-R-66-FS seriesleverisolationfor chemicals
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- isolation
- Media
- for chemicals
- Body
- flange, stainless steel
- Applications
- industrial, for the petroleum industry
- Other characteristics
- anti-static, quarter-turn, fire-safe
- DN
Max.: 10 in
Min.: 0.5 in
- Pressure
50 bar
(725.2 psi)- Temperature
Max.: 400 °F
(204 °C)Min.: 0 °F
(-18 °C)
Description

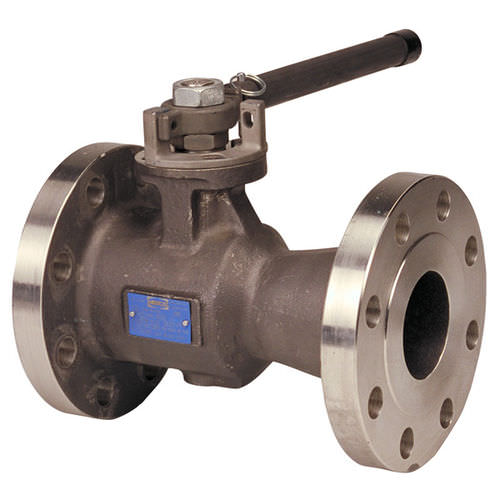

The NIBCO® stainless steel, flanged end ball valve provides bubble-tight shutoff at 720 PSI. The one-piece valve is recommended for industrial, petrochemical, utility service applications. It conforms to Fire Safe and Anti-Static requirements and is tested to API-598 criteria. This valve features a locking handle or manual gear operator. It may be used for isolation and throttling (half open to full open only).
The NIBCO® stainless steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve is equipped with mounting pad for actuation purposes. The reinforced PTFE seat ring, graphite and braided graphite stem packing and stainless steel ball/stem exhibits high chemical resistance properties. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Conventional port
Blowout-proof stem
Stainless steel ball and stem
Mounting pad
Fire safe
Vented ball
