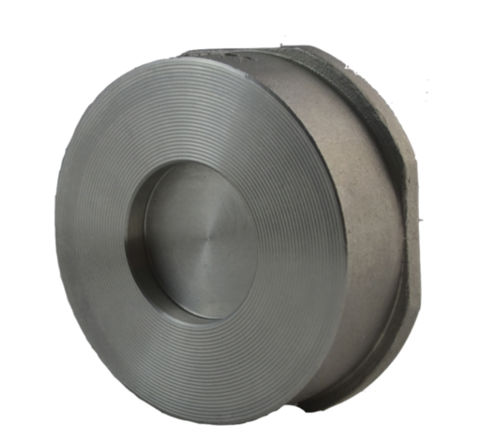

Disc check valve RV01for gasDINflange
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Fluid
- for gas
- Connexion
- DIN
- Body
- flange
- Material
- stainless steel
- Other characteristics
- spring
- DN
20 mm
(0.787 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 300 °C
(572 °F)Min.: -20 °C
(-4 °F)- Flow rate
7 m³/h
(247.2 ft³/h)
Description
disco check valve DN 20 made of Stainless steel CF8M seal metall for liquid and gaseous media PN 6/10/16/25/40 DIN EN 1092-1 Form B
tightness acc. to DIN EN 12266: - leak rate ≥ G
installation position: - any position
product feature: - face to face according DIN EN 558-1 row 49
