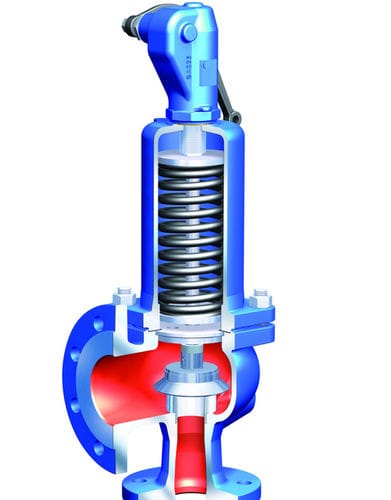

Gas safety valve SF02GDINsteel
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Connexion
- DIN, G
- Body material
- steel
- Other characteristics
- threaded, flange, with bellows, standard
- DN
80 mm
(3.15 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0.2 bar
(2.9 psi)
Description
flange-safety valve DN80/DN80 Einstelldruck 0,2 up to max. 40 bar for liquid and gaseous media made of cast steel 1.0619+N with lever
product: - flange-safety valve
temperature: - 0°C up to + 180°C
design: - closed lifting device and closed bonnet
lifting: - with lever
type test approval: - TÜV-SV-811 D/G/F
requirements: - acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: - vertical, spindle standing upwards
product feature 1: - safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
