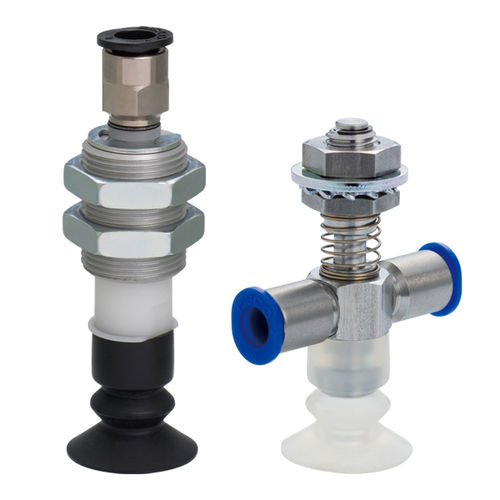

Soft vacuum suction cup RPV06 Series

bellowssilicone rubbernitrile rubber

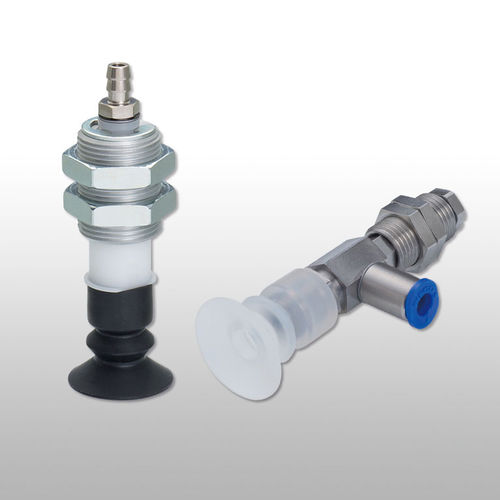

Best suitable for extracting plastic products or conveying fragile work. Soft and flexible pad enables to pick up paper, and also leaves less mark on plastic molded articles. Wide selection of pad sizes, materials and holder types. Pad size:5sizes. Pad material:6types. Holder type:16types. Dual port type is available for special holder (VPHD, VPHE). Suitable for linking multiple vacuum pads from a single vacuum source to convey work-pieces. Stroke length of spring type holder can be selected. Conventional long stroke holder (with cover) is integrated into VPC or VPD. Stroke:6, 10, 15 and 20mm Conventional long stroke holder (without cover) is renewed as VPOC or VPOD. Stroke:20, 30, 40 and 50mm Low dust emission type is newly introduced for spring type holder. Lower dust emission compared to conventional spring type holder. Noise level:Realizing low noise with 45dB. Connectable to all pad sizes. Stroke:2, 5, 10, 15mm are available. The pad holder requiring for applications of "No copper alloy" and "Low-level ozone resistance" is available. -S3 spec.:Non copper alloy is used for metal parts and HNBR or FKM is used for seal materials.
