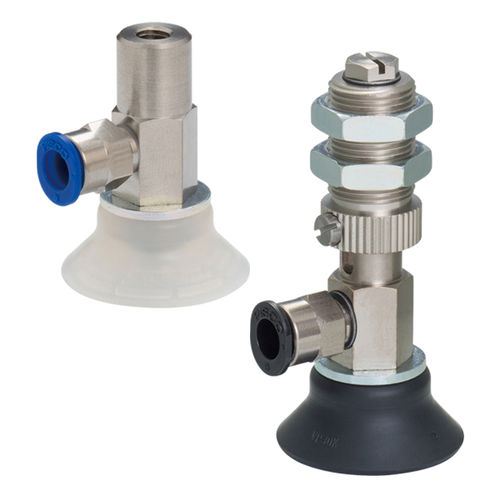

Skidproof vacuum suction cup VP series

circularsilicone rubberNBR

Optimal for transporting oil-coated components, such as press parts. Unique pad shape contributes to preventing pieces from skidding during transportation. Avoid slipping by pad shape design with grooves. Oil-proof NBR, which improves pad durability under the oily environment, is prepared for pad material. Wide selection of pad sizes, materials and holder types. Pad size:5sizes. Pad material:5types. Holder type:12types. Stroke length of spring type holder can be selected. Conventional long stroke holder (with cover) is integrated into VPC or VPD. Stroke:6, 10, 15 and 20mm Conventional long stroke holder (without cover) is renewed as VPOC or VPOD. Stroke:20, 30, 40 and 50mm Low dust emission type is newly introduced for spring type holder. Lower dust emission compared to conventional spring type holder. Noise level:Realizing low noise with 45dB. Connectable to all pad sizes. Stroke:2, 5, 10, 15mm are available. The pad holder requiring for applications of "No copper alloy" and "Low-level ozone resistance" is available. -S3 spec.:Non copper alloy is used for metal parts and HNBR or FKM is used for seal materials. Information on this product
