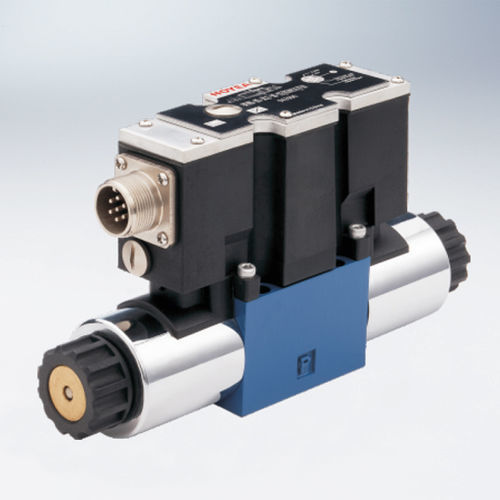

Direct-operated solenoid valve BFW 2X series

4/3-waynormally closedhydraulic

The built-in 4/2 and 4/3-way directly operated Proportional solenoid valves Direct operated spool without electrical position feedback Nominal sizes 6 and 10 Maximum flow 42L/min Maximum flow 75L/min Installation position - Optional, preferably horizontal Nominal flow When qvnom at ΔP=10bar (L/min) DN6 - 7, 15 and 26 DN10 - 30, 60 Flow (Max. Permissible) (L/min) - DN6 - 42 (with double flow 80) DN10 - 75 (with double flow 140) Pressure fluid - Mineral oil (HL, HLP) to DIN 51 524; For other fluid please consult with us. Viscosity range (mm²/s) - 20~380 (30~46 is preference) Hysteresis (%) - ≤5 Reversal error (%) - ≤1 Response sensitivity (%) - ≤0.5 Cleanliness - Maximum permissible degree of pressure fluid contamination to NAS 1638 to class 9 Recommended filter β10≥75
