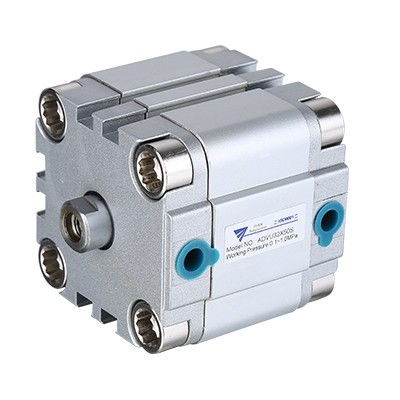

Pneumatic cylinder ADNpistondouble-actingsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston
- Configuration
- double-acting, single-acting
- Norms
- ISO 21287
- Other characteristics
- compact, standard, threaded
- Stroke
Max.: 200 mm
(7.874 in)Min.: 5 mm
(0.197 in)- Bore
Max.: 100 mm
(3.94 in)Min.: 20 mm
(0.79 in)- Pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Speed
Max.: 500 mm/s
Min.: 30 mm/s
- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
ISO21287 Standard Compact Pneumatic Cylinder
Working medium - - Clean air(40pm filteration)
Working pressure - - Double acting: 0.1~1 .0Mpa (14.5~ 145psi/1 ~ 1 0bar) /Double acting: 0.2-1 .0Mpa (29-145psi/1 -10bar)
Guaranteed pressure - - 1.5Mpa (215psi/15bar)
Cushion type - - Rubber cushion
