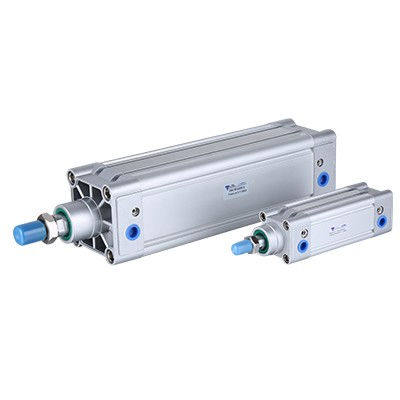

Pneumatic cylinder DNCairdouble-actingsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic, air
- Configuration
- double-acting, single-acting
- Material
- steel, stainless steel, aluminum alloy
- Norms
- ISO 15552, ISO 6432, ISO 6431
- Protection class
- IP65
- Applications
- industrial, for the automotive industry, for lifting applications, for agricultural machinery
- Other characteristics
- standard, custom
- Stroke
Min.: 25 mm
(0.984 in)Max.: 200 mm
(7.874 in)- Bore
Min.: 32 mm
(1.26 in)Max.: 100 mm
(3.94 in)- Pressure
Min.: 0.1 MPa
Max.: 1 MPa
- Speed
Min.: 30 mm/s
Max.: 800 mm/s
- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
ISO 15552/ISO6431 Standard Cylinder
Working medium - - Clean air(40ym filteration) - -
Guaranteed pressure - - l.SMpa (215psi/15bar) - -
Working temperature - (t:) - -20-80(No freezing) - -
Cushion type - (mm) - Air cushion - -
Cushion stroke - - 27 - - - 36
