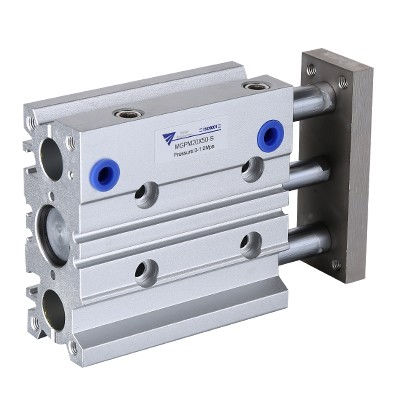

Pneumatic cylinder MGPwith guided piston roddouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- with guided piston rod
- Configuration
- double-acting
- Stroke
Max.: 250 mm
(9.843 in)Min.: 10 mm
(0.394 in)- Bore
Max.: 63 mm
(2.48 in)Min.: 12 mm
(0.47 in)- Pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Speed
Max.: 500 mm/s
Min.: 30 mm/s
- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Working medium - - Clean air(40pm filteration)
Guaranteed pressure - - 1.5Mpa (215psi/15bar)
Cushion type - - Bubber cushion
Stroke tolerance - (mm) - +1.0
Catalogs
Catalog
20 Pages
Ningbo PHEN Automation
48 Pages
