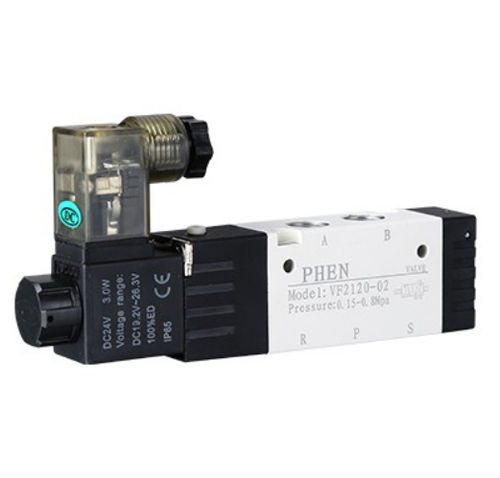

Pilot-operated solenoid valve PVF5-wayairIP65
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 5-way
- Medium
- air
- Body
- IP65
- Other characteristics
- spring
- DN
0.125 in, 0.25 in, 0.375 in
- Voltage
Max.: 110 V
Min.: 12 V
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 8 bar
(116 psi)Min.: 1.5 bar
(21.8 psi)
Description
Working meduium - Clean air(After 40 pm filteration )
Acting type - Internal pilot type
Reset type - Spring reset+Gas reset
Lubrication - Not required
Working pressure(MPa) - 0.15-0.8
Guaranted pressure (MPa) - 1.2
Working temperature (MPa) - -20~70(No freezing)
Voltage range (MPa) - -15%-10%
Power consumption (*C) - DC:3.0W; AC:4.0VA
Insulation class - Class F
Protective class - IP65(DIN40050)
Max.acting frequency - (2position): 5(Cycles/s); (3Position): 3(Cycles/s)
Activate time (S) - <0.05
