Double-sided adhesive tape D5306 series

polypropylenePETacrylic

Overview

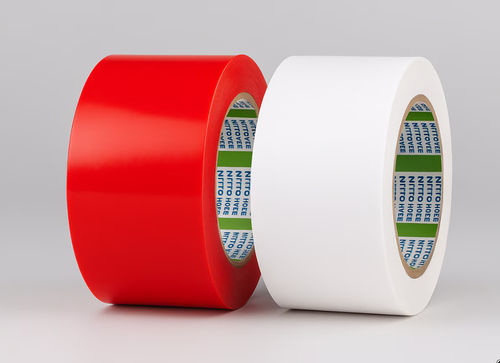

Nitto D5306RD / D5306WH is a heavy‑duty, multipurpose double‑coated tape composed of a PET carrier coated on both sides with a modified acrylic adhesive and supplied with a siliconized PP release liner. The design delivers strong adhesion to plastics, foams, metals and rough substrates while maintaining dimensional stability for consistent processing and application. The plastic release liner provides tear resistance suited to narrow‑width converting.

Features

• Heavy‑duty, multipurpose double‑coated tape
• High adhesion to various and rough substrates (plastics, foams, metals)
• High temperature resistance (Saft test up to 185°C)
• High holding power and shear resistance
• Easy processing and die‑cutting
• Excellent dimensional stability (low elongation/shrinkage)
• Plastic siliconized PP release liner with tear resistance for narrow‑width use

Structure
Construction: PET carrier (0.050 mm) coated on both sides with modified acrylic adhesive; siliconized PP release liner (0.070 mm).

Properties (typical values)
Tape total thickness (without liner): 0.220 mm — Test Method: EN 1942
Adhesive type: Modified acrylic
Release liner: D5306RD: siliconized red PP (0.070 mm); D5306WH: siliconized white PP (0.070 mm)
Carrier: PET (0.050 mm)
Adhesion to BA steel: 2000 cN/20 mm — Test Method: EN 1939 / ISO 29862
Adhesion to ABS: 1800 cN/20 mm — Test Method: EN 1939 / ISO 29862
Adhesion to PP: 1200 cN/20 mm — Test Method: EN 1939 / ISO 29862
Static shear: 1 mm / 3 h — Test Method: EN 1943
Heat resistance (Saft test): 185°C — Test conditions: +0.5°C/min, 20×15 mm, 200 g

Applications
Recommended for mounting decorative profiles in furniture manufacturing, securing cable ducts, mounting plastic parts for signage and nameplates, and fixing components in marketing and display devices where strong bond, dimensional stability and narrow‑width converting are required.

Technical specifications

• Total tape thickness (without liner): 0.220 mm (typical)
• Carrier: PET, 0.050 mm
• Adhesive: Modified acrylic
• Release liner: Siliconized PP 0.070 mm (red for D5306RD, white for D5306WH)
• Adhesion to BA steel: 2000 cN/20 mm (EN 1939 / ISO 29862)
• Adhesion to ABS: 1800 cN/20 mm (EN 1939 / ISO 29862)
• Adhesion to PP: 1200 cN/20 mm (EN 1939 / ISO 29862)
• Static shear: 1 mm / 3 h (EN 1943)
• Heat resistance (Saft test): 185°C
