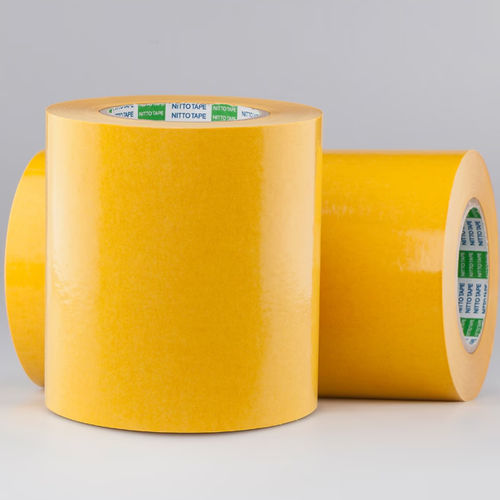

Double-sided adhesive tape DCT 5050S

paper lineracrylicnon-woven

Overview
Nitto 5050S is a double-coated adhesive tape with a non-woven tissue carrier coated on both sides with a modified acrylic adhesive. It offers high initial tack, good temperature resistance and handling suitable for foam lamination and paper/cardboard splicing.

Key benefits

• High initial adhesion
• Excellent handling and durability
• Suitable for foam lamination
• Reliable for paper/cardboard splicing (manual and automatic)

Features

• Efficient splice performance
• High shear resistance
• High repulsion resistance
• Good temperature resistance

Structure
Non-woven tissue carrier coated both sides with modified acrylic adhesive. Release liner: siliconized Havana paper (90 g/m²).

Properties (typical values)
Parameter | Typical value* | Test Method
Tape thickness | 0.105 mm (total without liner) | EN 1942
Adhesive type | Modified acrylic | n/a
Release liner | Siliconized Havana paper (90 g/m²) | n/a
Carrier type | Non-woven tissue | n/a
Adhesion to BA steel | 835 cN / 20 mm | EN 1939 / ISO 29862
Static shear | 1 mm / 3 h | EN 1943
Saft (heat) test | 150°C (±0.5°C, 20×15 mm, 200 g) | n/a

CAUTION*: The above are typical values and should not be used in writing specifications.

Applications
Nitto 5050S is suitable for foam lamination in automotive and general industrial applications where fast initial tack and reliable handling are required. In packaging it provides dependable performance for both manual and automatic splicing operations.

Specifications / Technical data

• Tape thickness: 0.105 mm (total without liner)
• Adhesive type: Modified acrylic
• Release liner: Siliconized Havana paper (90 g/m²)
• Carrier type: Non-woven tissue
• Adhesion to BA steel: 835 cN / 20 mm
• Static shear: 1 mm / 3 h
• Saft (heat) test: 150°C (±0.5°C, 20×15 mm, 200 g)
• Typical uses: foam lamination, paper/cardboard splicing, automotive, packaging (manual & automatic)
