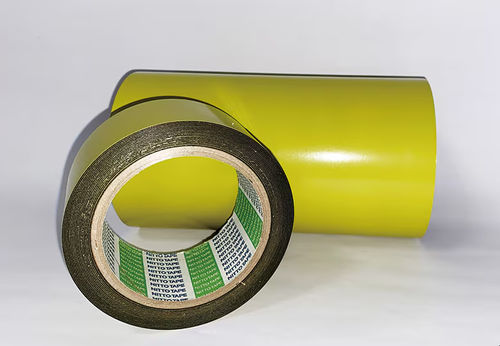

Double-sided adhesive tape 5790YPP

fasteningmountingpolypropylene

Product overview
The Nitto 5790YPP Series PFAS-free foam double coated tapes are pressure-sensitive foam tapes with a modified acrylic adhesive on both faces. Designed for reliable mounting and bonding, they deliver high adhesion on a wide range of substrates, including low surface energy materials. The foam carrier provides shock absorption and conformability to irregular surfaces. A yellow polypropylene release liner facilitates handling and converting.

Features

• PFAS-free foam double coated tape
• High adhesion on low surface energy substrates
• Yellow plastic release liner for easy handling and converting
• Good repulsion resistance
• Effective shock absorption
• Versatile bonding across different substrates
• Compensates for substrate irregularities
• Excellent holding power

Structure
Anthracite PO foam carrier with modified acrylic adhesives on both faces and a yellow polypropylene release liner (plastic). Reference graphic/illustration shown on product page.

General physical properties
Tape thickness (total without liner): 0.60 mm – 0.90 mm – 1.1 mm (Test method: EN 1942)
Adhesive type: Modified acrylic (typical value)
Release liner type: Yellow polypropylene (100 μm)
Carrier type: Anthracite PO foam (185 kg/m³)
Adhesion to BA steel: 1700 cN/20 mm (EN 1939 / ISO 29862)
Adhesion to ABS: 1800 cN/20 mm (EN 1939 / ISO 29862)
Adhesion to PP: 1400 cN/20 mm (EN 1939 / ISO 29862)
Static shear: 1 mm / 3 h (EN 1943)
SAFT: 115°C (+0.5°C, 20x15 mm, 200 g)
CAUTION: The above values are typical and should not be used as specification limits. Tape thickness is total thickness without liner. Test method details are described on the customer product specification.

Applications
Suitable for bonding metal sheets, nameplates, emblems, glass components and a wide range of plastics to various substrates. Appropriate for both interior and exterior applications. The foam carrier enables conformability to uneven surfaces; the plastic release liner simplifies handling, especially for narrow widths.

Technical characteristics / Specifications

• Tape thickness (total without liner): 0.60 mm / 0.90 mm / 1.1 mm
• Adhesive: Modified acrylic
• Release liner: Yellow polypropylene, 100 μm
• Carrier: Anthracite PO foam, 185 kg/m³
• Adhesion to BA steel: 1700 cN/20 mm
• Adhesion to ABS: 1800 cN/20 mm
• Adhesion to PP: 1400 cN/20 mm
• Static shear: 1 mm / 3 h
• SAFT: 115°C
